7S343 7-S-343 Ch=5714

7S343 7-S-343 Ch=5714; Zenith Radio Corp.; (ID = 90522) Radio
7S343 7-S-343 Ch=5714; Zenith Radio Corp.; (ID = 112496) Radio 7S343 7-S-343 Ch=5714; Zenith Radio Corp.; (ID = 112497) Radio
7S343 7-S-343 Ch=5714; Zenith Radio Corp.; (ID = 112499) Radio 7S343 7-S-343 Ch=5714; Zenith Radio Corp.; (ID = 112502) Radio
7S343 7-S-343 Ch=5714; Zenith Radio Corp.; (ID = 112505) Radio 7S343 7-S-343 Ch=5714; Zenith Radio Corp.; (ID = 112506) Radio
Use red slider bar for more.
7S343 7-S-343 Ch=5714; Zenith Radio Corp.; (ID = 112496) Radio
Zenith Radio Corp.;: 7S343 7-S-343 Ch=5714 [Radio] ID = 112496 401x482
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7S343 7-S-343 Ch=5714, Zenith Radio Corp.; Chicago, IL:

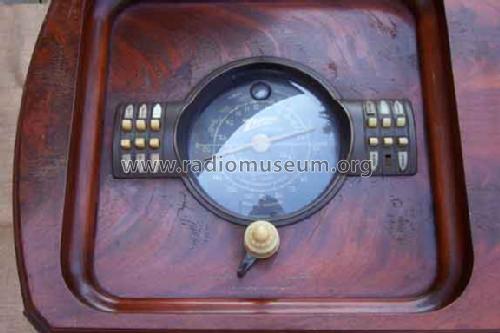

Zenith 7-S-343 (1939) copy from Ebay seller grillecloth

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6A8G 6K7G 6J5G 6F5G 6U5 6F6G 6X5G
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 7S343 7-S-343 Ch=5714 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console: Chairside Radio.
Notes Pushbuttons
Price in first year of sale 100.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Zenith Radio The Glory Years 1936-1945
