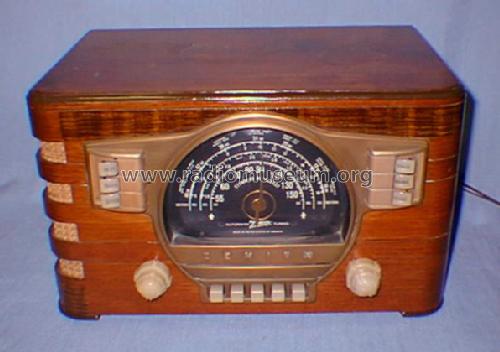

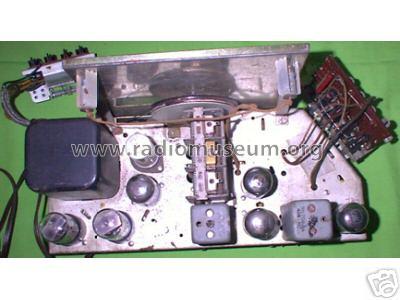

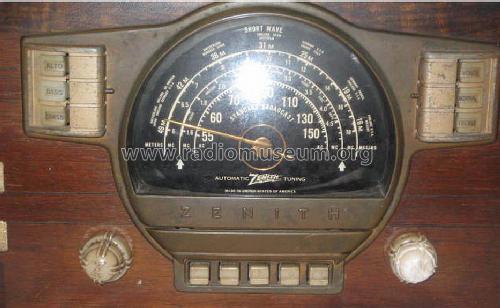

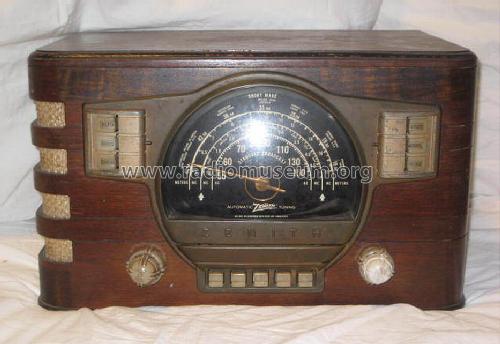

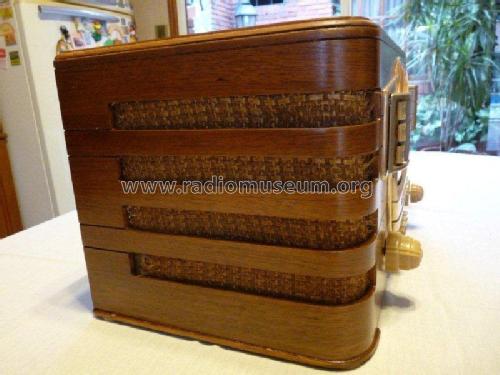

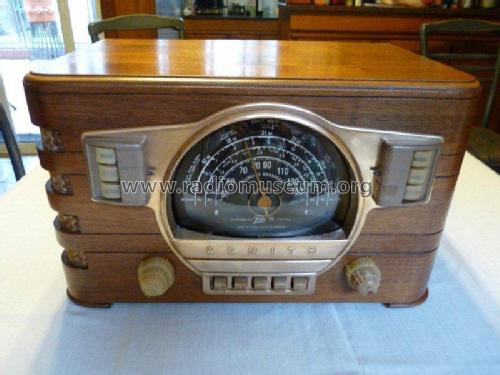

7S529 Ch= 7A02

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1940/1941

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
68024

- alternative name: Chicago Radio Lab

Schematics

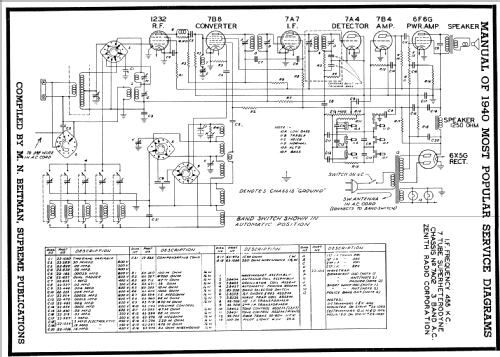

7S529 Ch= 7A02; Zenith Radio Corp.; (ID = 64104) Radio — Zenith Radio Corp.; 7S529 Ch= 7A02 (3)
