7S547 Chassis 7A02

7S547 Chassis 7A02; Zenith Radio Corp.; (ID = 64105) Radio

7S547 Chassis 7A02; Zenith Radio Corp.; (ID = 315697) Radio
7S547 Chassis 7A02; Zenith Radio Corp.; (ID = 57920) Radio 7S547 Chassis 7A02; Zenith Radio Corp.; (ID = 455185) Radio
7S547 Chassis 7A02; Zenith Radio Corp.; (ID = 455187) Radio 7S547 Chassis 7A02; Zenith Radio Corp.; (ID = 455186) Radio
7S547 Chassis 7A02; Zenith Radio Corp.; (ID = 455184) Radio 7S547 Chassis 7A02; Zenith Radio Corp.; (ID = 455188) Radio
Use red slider bar for more.
7S547 Chassis 7A02; Zenith Radio Corp.; (ID = 57920) Radio

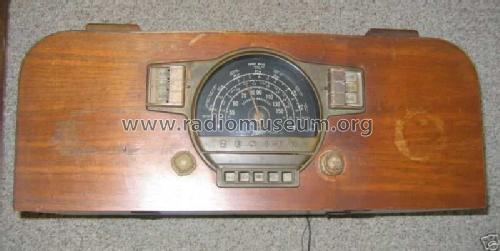

Zenith Radio Corp.;: 7S547 Chassis 7A02 [Radio] ID = 57920 331x297
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7S547 Chassis 7A02, Zenith Radio Corp.; Chicago, IL:
Copy gen. von John Goller Radio Attic

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 1232 7B8 7A7 7A4 7B4 6F6G 6X5G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 7S547 Chassis 7A02 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console: Chairside Radio.
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition


All listed radios etc. from Zenith Radio Corp.; Chicago, IL
