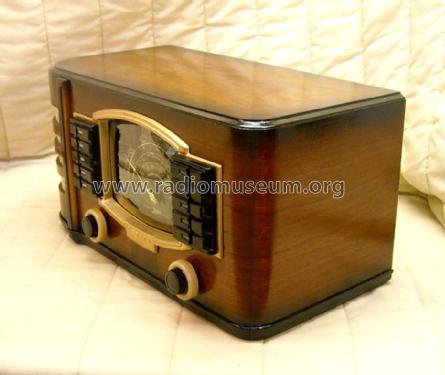

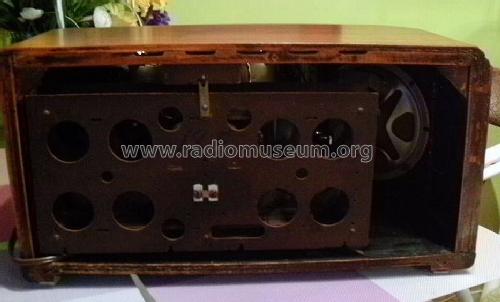

7S633R Chassis 7B01R

7S633R Chassis 7B01R; Zenith Radio Corp.; (ID = 346153) Radio

7S633R Chassis 7B01R; Zenith Radio Corp.; (ID = 346155) Radio
7S633R Chassis 7B01R; Zenith Radio Corp.; (ID = 658621) Radio 7S633R Chassis 7B01R; Zenith Radio Corp.; (ID = 658623) Radio
7S633R Chassis 7B01R; Zenith Radio Corp.; (ID = 658640) Radio 7S633R Chassis 7B01R; Zenith Radio Corp.; (ID = 102171) Radio
7S633R Chassis 7B01R; Zenith Radio Corp.; (ID = 102173) Radio 7S633R Chassis 7B01R; Zenith Radio Corp.; (ID = 102174) Radio
7S633R Chassis 7B01R; Zenith Radio Corp.; (ID = 658622) Radio 7S633R Chassis 7B01R; Zenith Radio Corp.; (ID = 658625) Radio
7S633R Chassis 7B01R; Zenith Radio Corp.; (ID = 658627) Radio 7S633R Chassis 7B01R; Zenith Radio Corp.; (ID = 658637) Radio
Use red slider bar for more.
7S633R Chassis 7B01R; Zenith Radio Corp.; (ID = 658621) Radio
Zenith Radio Corp.;: 7S633R Chassis 7B01R [Radio] ID = 658621 720x540
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7S633R Chassis 7B01R, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 7H7 7B8 7A7 7B6 6P5G 6AC5G 6X5G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 7S633R Chassis 7B01R - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel with Push Buttons.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
