7S681 Westchester Ch=7B02

7S681 Westchester Ch=7B02; Zenith Radio Corp.; (ID = 346207) Radio

7S681 Westchester Ch=7B02; Zenith Radio Corp.; (ID = 346208) Radio
7S681 Westchester Ch=7B02; Zenith Radio Corp.; (ID = 112535) Radio 7S681 Westchester Ch=7B02; Zenith Radio Corp.; (ID = 112536) Radio
7S681 Westchester Ch=7B02; Zenith Radio Corp.; (ID = 1060444) Radio 7S681 Westchester Ch=7B02; Zenith Radio Corp.; (ID = 1225714) Radio
7S681 Westchester Ch=7B02; Zenith Radio Corp.; (ID = 1225715) Radio 7S681 Westchester Ch=7B02; Zenith Radio Corp.; (ID = 1225716) Radio
7S681 Westchester Ch=7B02; Zenith Radio Corp.; (ID = 1225717) Radio 7S681 Westchester Ch=7B02; Zenith Radio Corp.; (ID = 1225719) Radio
7S681 Westchester Ch=7B02; Zenith Radio Corp.; (ID = 1225720) Radio 7S681 Westchester Ch=7B02; Zenith Radio Corp.; (ID = 1225721) Radio
Use red slider bar for more.
7S681 Westchester Ch=7B02; Zenith Radio Corp.; (ID = 112535) Radio
Zenith Radio Corp.;: 7S681 Westchester Ch=7B02 [Radio] ID = 112535 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7S681 Westchester Ch=7B02, Zenith Radio Corp.; Chicago, IL:

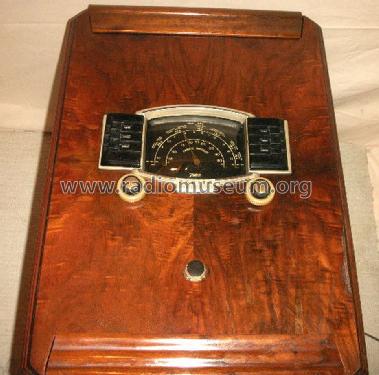

Zenith 7-S-681 (1942) Copy from Ebay seller mynewnickname

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 7H7 7B8 7A7 7B6 6AD7G 6F6G 5Y4G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: 7S681 Westchester Ch=7B02 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console: Chairside Radio.
Dimensions (WHD) 29.8 x 21.3 x 20.8 inch / 757 x 541 x 528 mm
Notes Pushbuttons.
Price in first year of sale 125.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Radio Retailing (Radio & Television R.) (November 1941 page 18.)
