• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68071

• • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6K7G 6C5G 6A8G 6K7G 6H6G 6F5G 6F6G 5Y3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

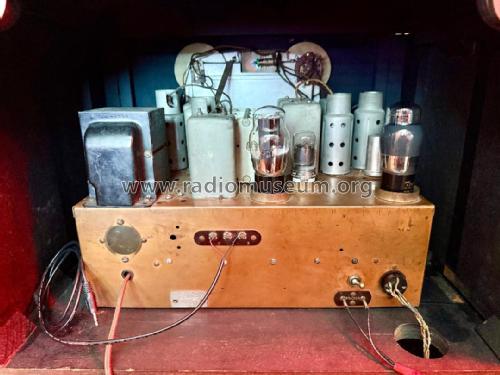

• Model: 8A154 Ch=5802A - Zenith Radio Corp.; Chicago,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 24.8 x 41.3 x 15.4 inch / 630 x 1049 x 391 mm

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before
