8H034 Ch= 8C01

• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68082

• • alternative name: Chicago Radio Lab

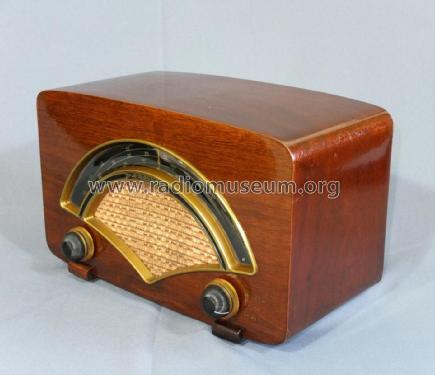

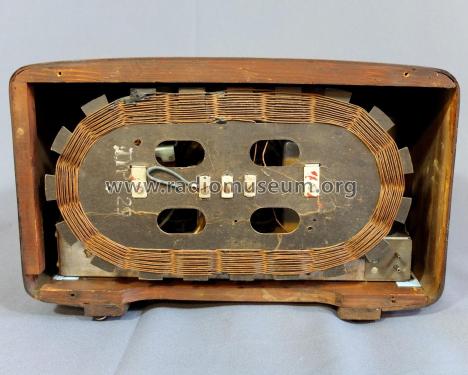

• Picture
• Schematics

Previous Next

Previous Next

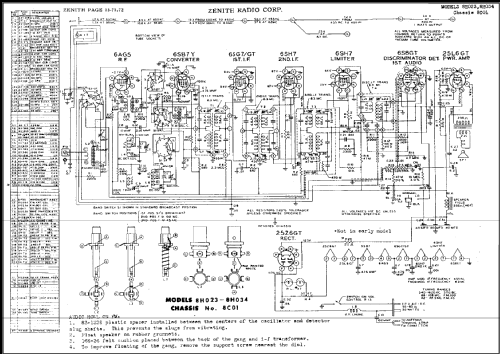

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6AG5 6SB7Y 6SG7 6SH7 6SH7 6S8GT 25L6GT 25Z6GT

• Main principle
• Superhet with RF-stage; ZF/IF 455/8300 kHz

• Tuned circuits
• 9 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 8H034 Ch= 8C01 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 14.625 x 9 x 8.25 inch / 371 x 229 x 210 mm

• Notes
• Two FM bands (has both 88 - 108 MHz and prewar FM band).

• Price in first year of sale
• 89.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Machine Age to Jet Age II (page 318.)
