For model 8S451 8-S-451 Ch=5808, Zenith Radio Corp.; Chicago, IL:
Copy gen. von John Goller Radio Attic

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 1232 6A8G 6K7G 6J5G 6U5 6F5G 6F6G 6X5G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 8S451 8-S-451 Ch=5808 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console: Chairside Radio.
Dimensions (WHD) 15.4 x 21 x 27.5 inch / 391 x 533 x 699 mm
Notes

Pushbuttons

Member John Goller has reported an error in the Zenith schematics for Chassis 5808 covering models 8S443, 8S451, and 8S463.  The same error is found in Chassis 1005 covering models 10S443, 10S452, 10S464, 10S470, 10S491, and 10S492, and in Chassis 1103 for model 11S474.

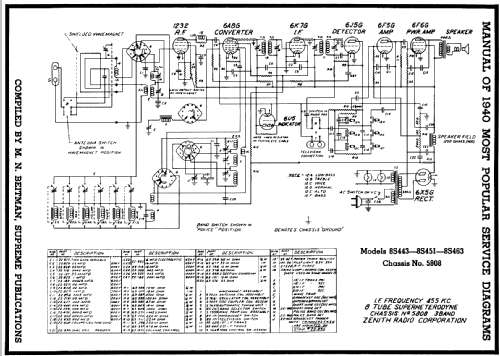

This error is in the Wavemagnet Antenna circuit. The Wavemagnet antenna for the above model does not have a "Wavemagnet or External" antenna switch on the antenna.  It does have a Local Distance switch which grounds a 10K resistor to the cathode of the 1232 RF amp tube for distance position.  The other leads from the Wavemagnet to into the radio chassis also have errors.  These errors appear to have originated in the Zenith Service Manuals and have been carried forward in the Riders and Beitman schematics.

John Goller has prepared a revised schematic that shows the correct Wavemagnet Antenna circuit wiring along with the correct antenna plug pin connections.  This schematic is included in the model file.

Price in first year of sale 80.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Zenith Radio The Glory Years 1936-1945
