8S490 8-S-490 Ch=5811P

8S490 8-S-490 Ch=5811P; Zenith Radio Corp.; (ID = 312206) Radio 8S490 8-S-490 Ch=5811P; Zenith Radio Corp.; (ID = 312209) Radio
8S490 8-S-490 Ch=5811P; Zenith Radio Corp.; (ID = 312211) Radio 8S490 8-S-490 Ch=5811P; Zenith Radio Corp.; (ID = 241881) Radio
8S490 8-S-490 Ch=5811P; Zenith Radio Corp.; (ID = 312207) Radio 8S490 8-S-490 Ch=5811P; Zenith Radio Corp.; (ID = 312208) Radio
8S490 8-S-490 Ch=5811P; Zenith Radio Corp.; (ID = 312210) Radio 8S490 8-S-490 Ch=5811P; Zenith Radio Corp.; (ID = 312212) Radio
Use red slider bar for more.
8S490 8-S-490 Ch=5811P; Zenith Radio Corp.; (ID = 312206) Radio

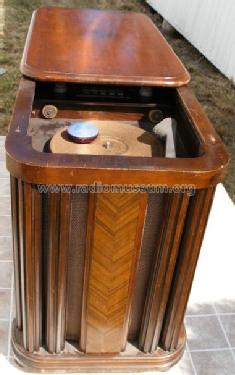

Zenith Radio Corp.;: 8S490 8-S-490 Ch=5811P [Radio] ID = 312206 593x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8S490 8-S-490 Ch=5811P, Zenith Radio Corp.; Chicago, IL:
with courtesy by Ebayseller powerplantgirl

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 1232 6A8G 6K7G 6Q7G 6AF5G 25AC5G 25Z6G 25Z6G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 8S490 8-S-490 Ch=5811P - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console: Chairside Radio.
Dimensions (WHD) 15 x 21 x 26.9 inch / 381 x 533 x 683 mm
Notes Pushbuttons; slide top or hinged; phono version of chassis 5810;
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Zenith Radio The Glory Years 1936-1945

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
