8S548 Ch= 8A02 (pre war)

8S548 Ch= 8A02 ; Zenith Radio Corp.; (ID = 64122) Radio
8S548 Ch= 8A02 ; Zenith Radio Corp.; (ID = 59392) Radio 8S548 Ch= 8A02 ; Zenith Radio Corp.; (ID = 315102) Radio
8S548 Ch= 8A02 ; Zenith Radio Corp.; (ID = 315103) Radio 8S548 Ch= 8A02 ; Zenith Radio Corp.; (ID = 315104) Radio
8S548 Ch= 8A02 ; Zenith Radio Corp.; (ID = 315105) Radio 8S548 Ch= 8A02 ; Zenith Radio Corp.; (ID = 315107) Radio
Use red slider bar for more.
8S548 Ch= 8A02 ; Zenith Radio Corp.; (ID = 59392) Radio

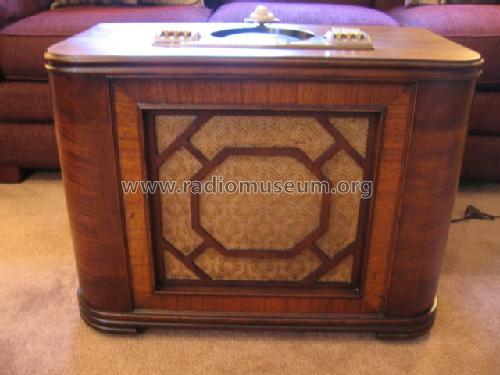

Zenith Radio Corp.;: 8S548 Ch= 8A02 [Radio] ID = 59392 431x374
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8S548 Ch= 8A02 (pre war), Zenith Radio Corp.; Chicago, IL:
Copy gen. von John Goller Radio Attic

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 1232 6A8G 6K7G 6J5G 6F5G 6P5G 6AC5G 6X5G
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 8S548 Ch= 8A02 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console: Chairside Radio.
Dimensions (WHD) 15 x 21 x 27.4 inch / 381 x 533 x 696 mm
Notes Pushbuttons
Price in first year of sale 75.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Zenith Radio The Glory Years 1936-1945
