For model 975 Ch= 5902, Zenith Radio Corp.; Chicago, IL:
Zenith model 975 . Ebay seller fix_it1.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 58 2A7 58 56 56 56 2A5 2A5 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 975 Ch= 5902 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).

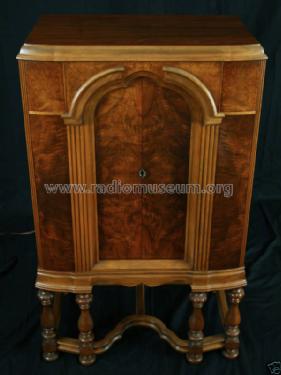

Notes 6-legged lowboy with stretcher base.
Two speakers.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Pre-War Consoles
