9 tubes 37A

9 tubes 37A; Zenith Radio Corp.; (ID = 182390) Radio 9 tubes 37A; Zenith Radio Corp.; (ID = 182391) Radio

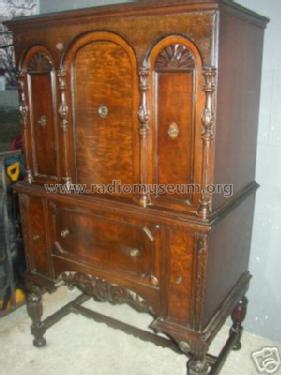

9 tubes 37A; Zenith Radio Corp.; (ID = 182392) Radio 9 tubes 37A; Zenith Radio Corp.; (ID = 1383076) Radio
9 tubes 37A; Zenith Radio Corp.; (ID = 1383080) Radio 9 tubes 37A; Zenith Radio Corp.; (ID = 1383082) Radio
9 tubes 37A; Zenith Radio Corp.; (ID = 1870745) Radio 9 tubes 37A; Zenith Radio Corp.; (ID = 1870748) Radio
Use red slider bar for more.

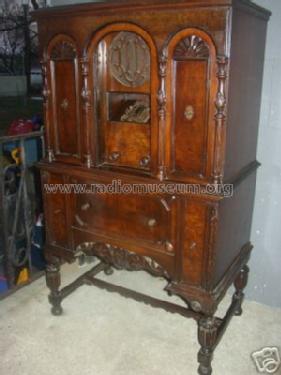

9 tubes 37A; Zenith Radio Corp.; (ID = 182390) Radio
Zenith Radio Corp.;: 9 tubes 37A [Radio] ID = 182390 300x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model 9 tubes 37A, Zenith Radio Corp.; Chicago, IL:
37-A (1928)

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1928 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 27 27 27 27 27 26 50 81 81
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: 9 tubes 37A - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
Notes One dial (primary tuning control knob)
Price in first year of sale 625.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
