9H984 Georgian Ch= 9F22

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1948 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 68136
    • alternative name: Chicago Radio Lab

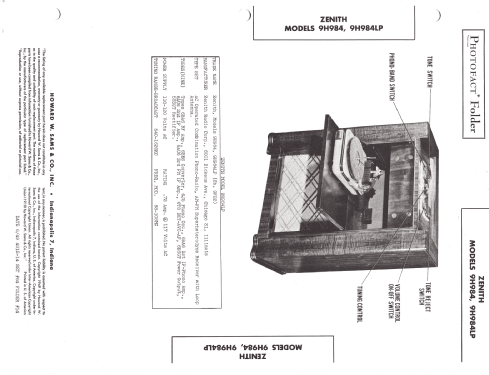

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 9H984 Georgian Ch= 9F22 - Zenith Radio Corp.; Chicago,
  • Shape
  • Console with any shape - in general
  • Notes
  • See also teh very similar model 9H881 - we don't know if both have been called "Georgian" (with a price of $ 239.50) - or the other.
  • Price in first year of sale
  • 240.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 19 = 1949 and before
