9S242 Zephyr Ch=5905

9S242 Zephyr Ch=5905; Zenith Radio Corp.; (ID = 317360) Radio

9S242 Zephyr Ch=5905; Zenith Radio Corp.; (ID = 317361) Radio

9S242 Zephyr Ch=5905; Zenith Radio Corp.; (ID = 317362) Radio

9S242 Zephyr Ch=5905; Zenith Radio Corp.; (ID = 317363) Radio

9S242 Zephyr Ch=5905; Zenith Radio Corp.; (ID = 317364) Radio
9S242 Zephyr Ch=5905; Zenith Radio Corp.; (ID = 188576) Radio 9S242 Zephyr Ch=5905; Zenith Radio Corp.; (ID = 323547) Radio
9S242 Zephyr Ch=5905; Zenith Radio Corp.; (ID = 323557) Radio 9S242 Zephyr Ch=5905; Zenith Radio Corp.; (ID = 323559) Radio
9S242 Zephyr Ch=5905; Zenith Radio Corp.; (ID = 323561) Radio
Use red slider bar for more.
9S242 Zephyr Ch=5905; Zenith Radio Corp.; (ID = 188576) Radio

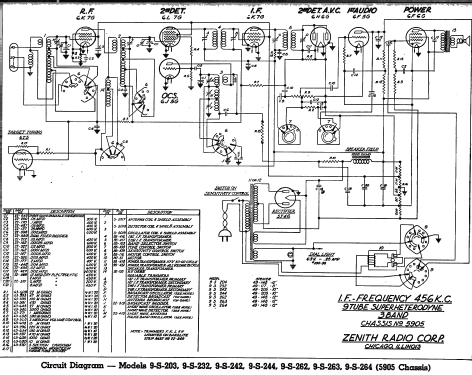

Zenith Radio Corp.;: 9S242 Zephyr Ch=5905 [Radio] ID = 188576 500x390
Select picture or schematic to display from thumbnails on the right and click for download.
For model 9S242 Zephyr Ch=5905, Zenith Radio Corp.; Chicago, IL:
9-S-242 (Ch=5905) 1937. Image shows model 7-S-242. Model 9-S-242 use the same cabinet.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6K7G 6L7G 6K7G 6K7G 6T5 6H6G 6F5G 6F6G 5Y4G
Main principle Superhet with RF-stage; ZF/IF 456 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out 4.5 W (undistorted)
from Radiomuseum.org Model: 9S242 Zephyr Ch=5905 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console: Chairside Radio.
Dimensions (WHD) 27.8 x 20.4 x 17.8 inch / 706 x 518 x 452 mm
Notes John Steven´s design;
Price in first year of sale 110.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition


All listed radios etc. from Zenith Radio Corp.; Chicago, IL
