For model A1410LU Ch= 15A26U, Zenith Radio Corp.; Chicago, IL:

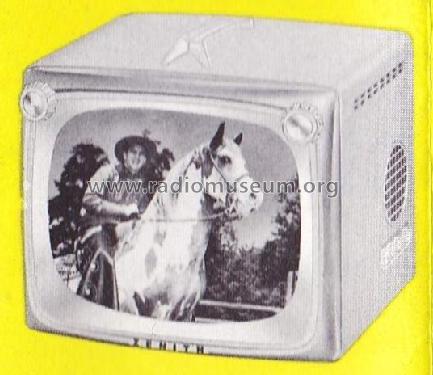

USA_Zenith_model 1410LU.Image shows model A1410L. Model A1410LU use the same case but has other chassis.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: 14AUP4
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: A1410LU Ch= 15A26U - Zenith Radio Corp.; Chicago,
Notes 14" b/w TV with US standard VHF Tuner, Channels 2 thru 13, 14 thru 83 UHF.
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 7-58, Set 407, Folder 3)

Model page created by Egon Penker. See "Data change" for further contributors.
