A1512JU Ch= 15A25U; Zenith Radio Corp.; (ID = 2543545) Television

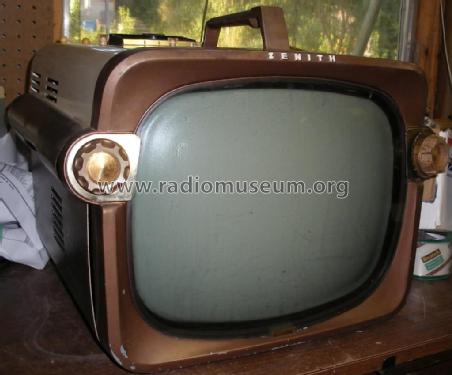

Zenith Radio Corp.;: A1512JU Ch= 15A25U [Television] ID = 2543545 1024x849
Select picture or schematic to display from thumbnails on the right and click for download.
For model A1512JU Ch= 15A25U, Zenith Radio Corp.; Chicago, IL:
Copy from Ebay seller taadaa58.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: 3AF4A 6BK7A 6U8 4CB6 4CB6 4CB6 8AU8 4BN6 6AQ5A 4BU8 8CM7 8CM7 17DQ6 1B3GT 17AX4GT 14XP4
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: A1512JU Ch= 15A25U - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes

Zenith model A1512JU is a 14" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 15A25U, VHF- tuner S-41361 , UHF tuner S-40283 and picture tube 14XP4A.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 388 Folder 4 dated 2-58)

Model page created by Dirk Taekels. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, IL
Here you find 4254 models, 3878 with images and 3371 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
