A1515W Ch= 15A25

A1515W Ch= 15A25; Zenith Radio Corp.; (ID = 2448247) Television

A1515W Ch= 15A25; Zenith Radio Corp.; (ID = 2448249) Television
A1515W Ch= 15A25; Zenith Radio Corp.; (ID = 2448270) Television A1515W Ch= 15A25; Zenith Radio Corp.; (ID = 2448271) Television
A1515W Ch= 15A25; Zenith Radio Corp.; (ID = 2448272) Television A1515W Ch= 15A25; Zenith Radio Corp.; (ID = 2448274) Television
Use red slider bar for more.
A1515W Ch= 15A25; Zenith Radio Corp.; (ID = 2448270) Television
Zenith Radio Corp.;: A1515W Ch= 15A25 [Television] ID = 2448270 870x708
Select picture or schematic to display from thumbnails on the right and click for download.
For model A1515W Ch= 15A25, Zenith Radio Corp.; Chicago, IL:
Copy from Ebay seller spacepatrol.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1957 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: 5BK7A 5U8 4CB6 4CB6 4CB6 8AU8 4BN6 6AQ5A 4BU8 8CM7 8CM7 17DQ6 1B3GT 17AX4GT 14XP4
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A1515W Ch= 15A25 - Zenith Radio Corp.; Chicago,
Notes

Zenith model A1515W is a 14" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 15A25, VHF tuner S-22530 and picture tube 14PXP4.

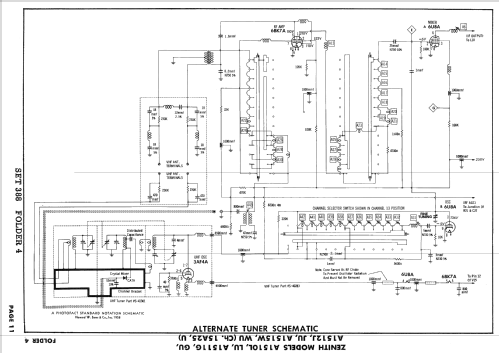

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 373 Folder 17-S dated 10-57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
