For model A1717G Ch= 15A26, Zenith Radio Corp.; Chicago, IL:

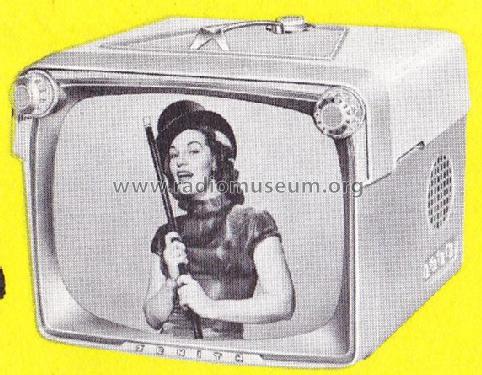

USA_Zenith_A1717G_front.Image shows model A1718G. Model A1717G use the same case but less built in wave antenna.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: 6BK7A 6U8 4BZ6 4BZ6 4BZ6 8AW8A 4BN6 6AQ5A 4BU8 11CY7 8CM7 17DQ6A 1G3GT 17AX4GT 17CRP4
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: A1717G Ch= 15A26 - Zenith Radio Corp.; Chicago,
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Notes

Zenith model A1717G is a 17" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 15A26, VHF tuner 175-112A and picture tube 17CRP4.

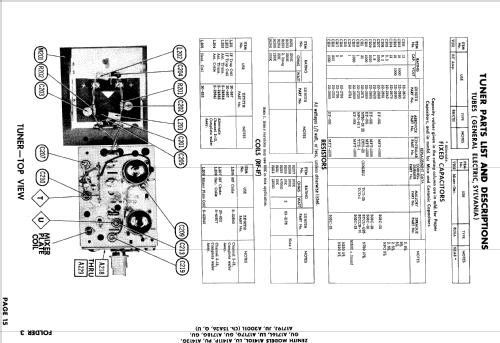

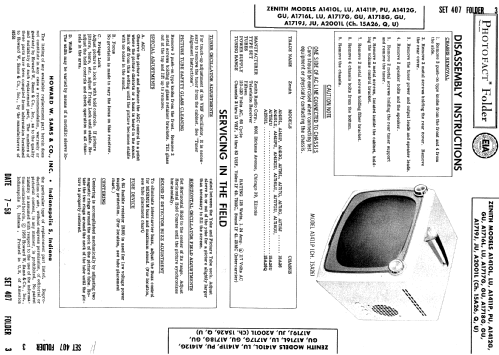

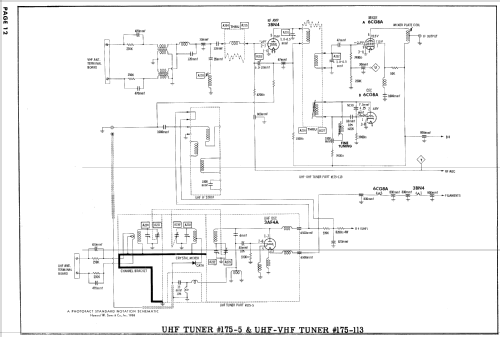

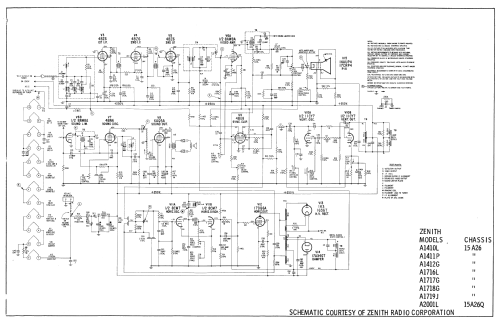

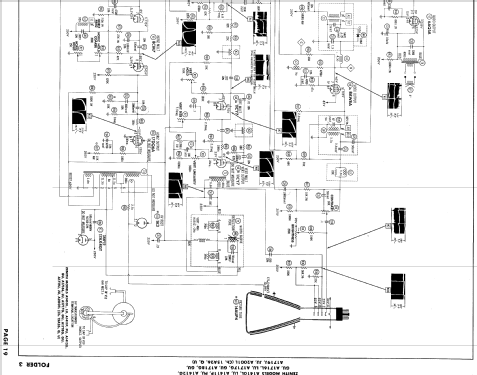

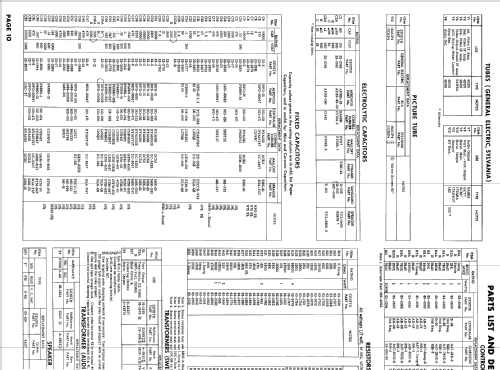

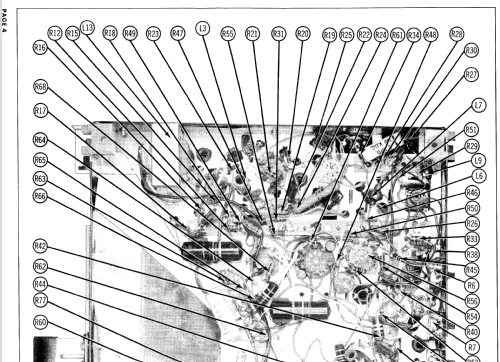

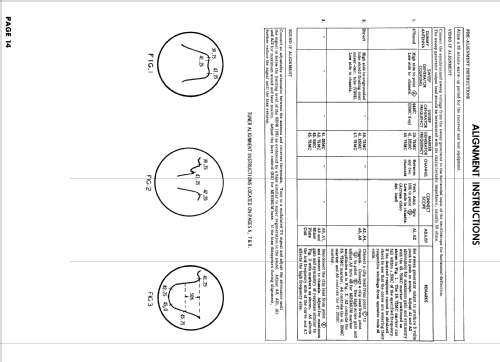

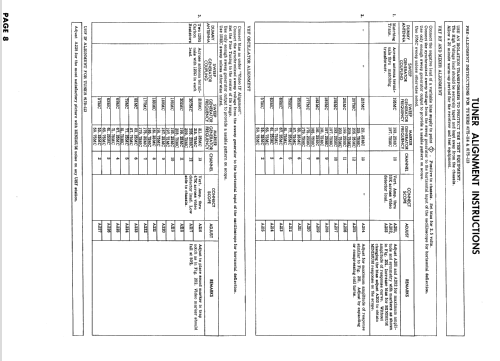

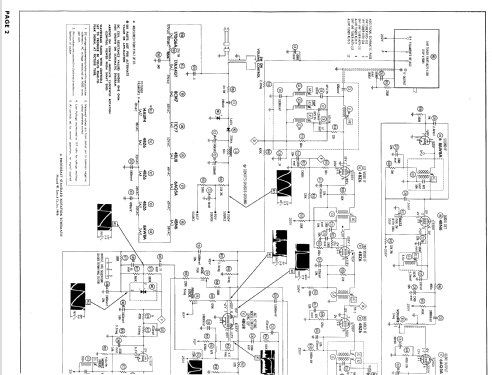

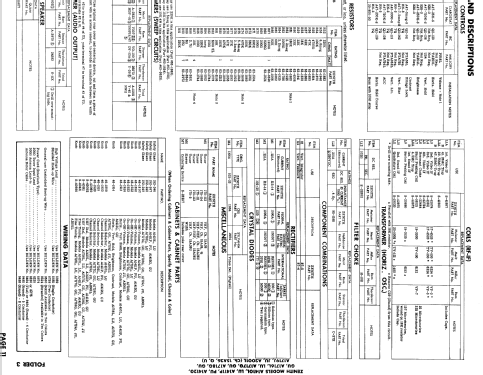

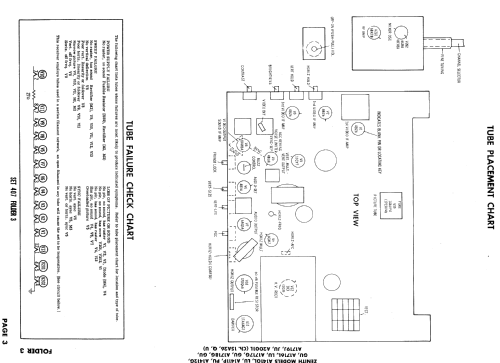

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 7-58, Set 407, Folder 3)
Literature/Schematics (2) Photofact Folder, Howard W. SAMS (Set 390 Folder 13-S dated 3-58)

Model page created by Egon Penker. See "Data change" for further contributors.
