For model A2253E Ch= 17A30, Zenith Radio Corp.; Chicago, IL:
Copy from Zenith Folder.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: 6BN4 6CG8A 6BZ6 6BZ6 6DK6 6CX8 6BU8 6BN6 6AQ5A 6CY7 6CN7 6CG7 6DQ6A 6AX4GT 1J3 or 1B3GT 5U4GB or 5AU4 21CXP4 or 24AJP4
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A2253E Ch= 17A30 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

Zenith model A2253E is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 17A30, VHF tuner S-42843 and picture tube 21CXP4 or 24AJP4.

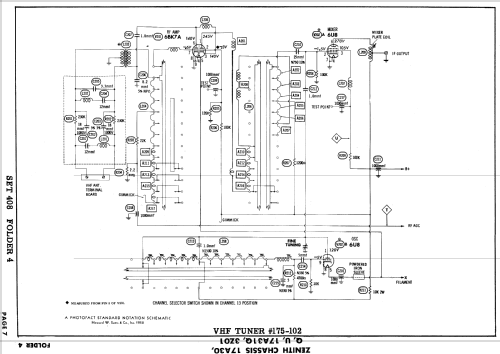

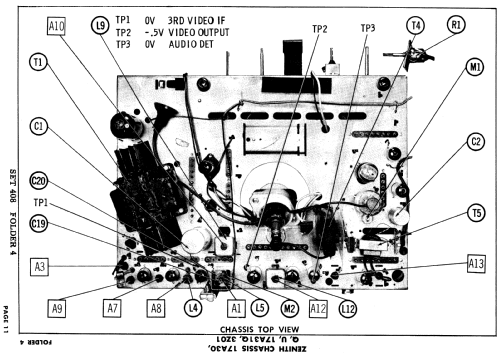

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 8-58, Set 408, Folder 4)
Literature/Schematics (2) Photofact Folder, Howard W. SAMS (Set 390 Folder 13-S dated 3-58)

Model page created by Egon Penker. See "Data change" for further contributors.
