For model A3004 Ch= 17A31Q, Zenith Radio Corp.; Chicago, IL:
Copy from Zenith Folder.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: 21CXP4
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A3004 Ch= 17A31Q - Zenith Radio Corp.; Chicago,
Notes 21" b/w TV with US standard VHF Tuner, Channels 2 thru 13, 14 thru 83 UHF. Some models are available with 24" Picture Tube 24AJP4.

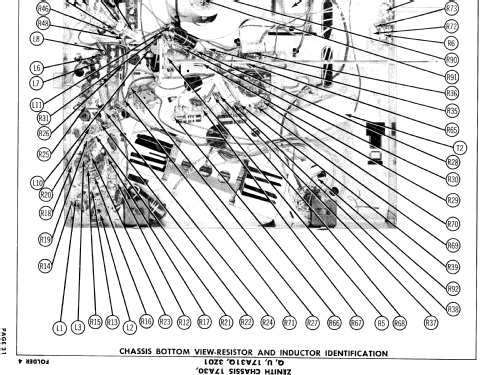

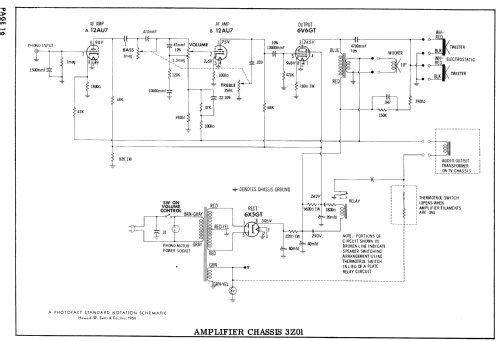

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 8-58, Set 408, Folder 4)

Model page created by Egon Penker. See "Data change" for further contributors.
