A4007R Ch= 19A30Q
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- alternative name: Chicago Radio Lab
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Valves / Tubes
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: A4007R Ch= 19A30Q - Zenith Radio Corp.; Chicago,

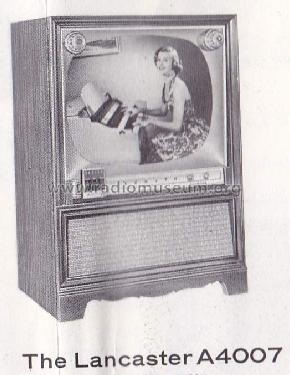

- 21" b/w TV with US standard VHF Tuner Channels 2 thru 13, 14 thru 83 UHF.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 7-58, Set 406, Folder 4)
- Model page created by Egon Penker. See "Data change" for further contributors.
