For model A400W Ch= 4A40, Zenith Radio Corp.; Chicago, IL:

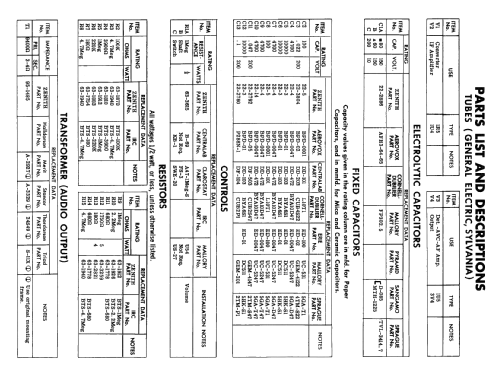

Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 117=105-125 or Battery Pack: 7.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: A400W Ch= 4A40 - Zenith Radio Corp.; Chicago,
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Notes

Zenith model A400W is a three power portabe AM receiver.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 373 Folder 16 dated 10-57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
