A402Y 4A41

A402Y 4A41; Zenith Radio Corp.; (ID = 355222) Radio A402Y 4A41; Zenith Radio Corp.; (ID = 355225) Radio
A402Y 4A41; Zenith Radio Corp.; (ID = 355228) Radio
Use red slider bar for more.
A402Y 4A41; Zenith Radio Corp.; (ID = 355222) Radio

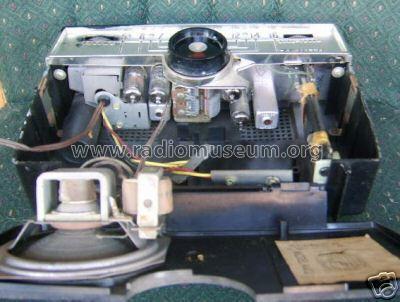

Zenith Radio Corp.;: A402Y 4A41 [Radio] ID = 355222 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model A402Y 4A41, Zenith Radio Corp.; Chicago, IL:
Withcourtesy by Ebayseller sherrynewton

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC/DC 117 / 7,5 & ;90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A402Y 4A41 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10.5 x 0 x 0 inch / 267 x 0 x 0 mm
Circuit diagram reference Beitman Radio Diagrams Vol. 18, 1958
Mentioned in - - Manufacturers Literature
Literature/Schematics (1) The Portable Radio in American Life
