A504 "Sun Valley" Ch= 5A41

A504 'Sun Valley' Ch= 5A41; Zenith Radio Corp.; (ID = 140332) Radio
A504 'Sun Valley' Ch= 5A41; Zenith Radio Corp.; (ID = 118744) Radio
Use red slider bar for more.
A504 'Sun Valley' Ch= 5A41; Zenith Radio Corp.; (ID = 118744) Radio

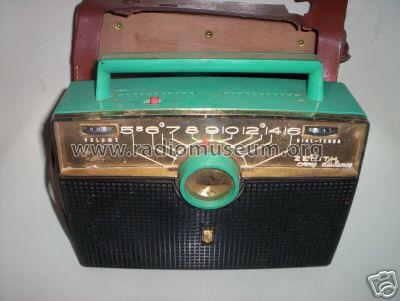

Zenith Radio Corp.;: A504 "Sun Valley" Ch= 5A41 [Radio] ID = 118744 400x301
Select picture or schematic to display from thumbnails on the right and click for download.
For model A504 "Sun Valley" Ch= 5A41, Zenith Radio Corp.; Chicago, IL:
A-504(Ch=5A41)1957 copy from Ebay seller salvadoredoggie213

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1957 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1U4 1R5 1U4 1U5 3V4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / (9; 90); AC/DC 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A504 "Sun Valley" Ch= 5A41 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes Sam´s 346-13 ; Selenium Rectifier
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Beitman Radio Diagrams Vol. 18, 1958

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
