A508L 5Z05

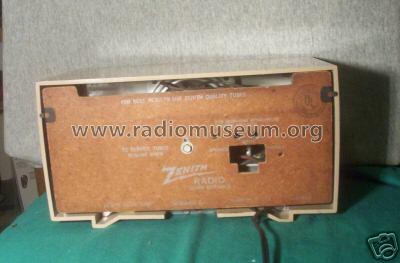

A508L 5Z05; Zenith Radio Corp.; (ID = 359590) Radio A508L 5Z05; Zenith Radio Corp.; (ID = 359591) Radio
Use red slider bar for more.
A508L 5Z05; Zenith Radio Corp.; (ID = 359590) Radio
Zenith Radio Corp.;: A508L 5Z05 [Radio] ID = 359590 400x307
Select picture or schematic to display from thumbnails on the right and click for download.
For model A508L 5Z05, Zenith Radio Corp.; Chicago, IL:
With courtesy by Ed Ripley

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BA6 12BE6 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A508L 5Z05 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes Color light tan. Beitman shows for chassis 5Z05 a 12AT6 instead of 12AV6. Both tubes are pin-compatible, although electrically different.
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 17, 1957 (p.177 for chassis)

Model page created by Hans Amberger. See "Data change" for further contributors.
