A512W Ch= 5A02

A512W Ch= 5A02; Zenith Radio Corp.; (ID = 584464) Radio

A512W Ch= 5A02; Zenith Radio Corp.; (ID = 584465) Radio

A512W Ch= 5A02; Zenith Radio Corp.; (ID = 584466) Radio

A512W Ch= 5A02; Zenith Radio Corp.; (ID = 584467) Radio
A512W Ch= 5A02; Zenith Radio Corp.; (ID = 1998440) Radio A512W Ch= 5A02; Zenith Radio Corp.; (ID = 1998441) Radio
A512W Ch= 5A02; Zenith Radio Corp.; (ID = 584463) Radio A512W Ch= 5A02; Zenith Radio Corp.; (ID = 1998442) Radio
Use red slider bar for more.
A512W Ch= 5A02; Zenith Radio Corp.; (ID = 1998440) Radio
Zenith Radio Corp.;: A512W Ch= 5A02 [Radio] ID = 1998440 754x464
Select picture or schematic to display from thumbnails on the right and click for download.
For model A512W Ch= 5A02, Zenith Radio Corp.; Chicago, IL:
Copy from Ebay seller 102257tl.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110 - 120 Volt
Loudspeaker 2 Loudspeakers / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: A512W Ch= 5A02 - Zenith Radio Corp.; Chicago,
Shape Tablemodel, low profile (big size).
Notes The Zenith Model A512W is an AC/DC operated AM Receiver.

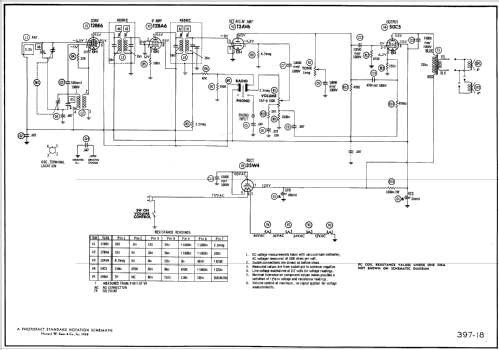

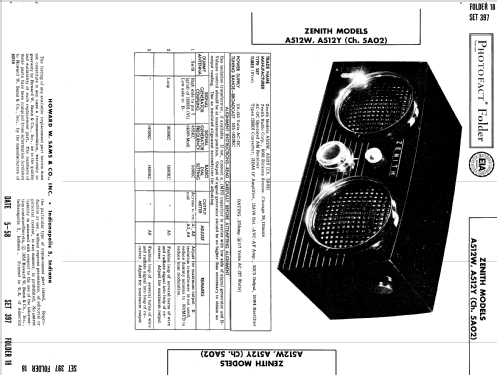

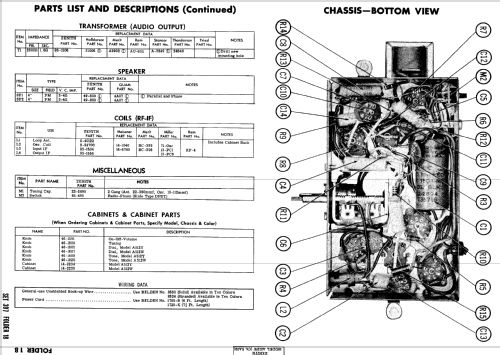

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-58, Set 397, Folder 18)
