A513R Ch=5A01; Zenith Radio Corp.; (ID = 507923) Radio

A513R Ch=5A01; Zenith Radio Corp.; (ID = 507924) Radio

A513R Ch=5A01; Zenith Radio Corp.; (ID = 507925) Radio

A513R Ch=5A01; Zenith Radio Corp.; (ID = 507926) Radio
A513R Ch=5A01; Zenith Radio Corp.; (ID = 72284) Radio A513R Ch=5A01; Zenith Radio Corp.; (ID = 118751) Radio
A513R Ch=5A01; Zenith Radio Corp.; (ID = 118752) Radio A513R Ch=5A01; Zenith Radio Corp.; (ID = 118753) Radio
A513R Ch=5A01; Zenith Radio Corp.; (ID = 707426) Radio
Use red slider bar for more.
A513R Ch=5A01; Zenith Radio Corp.; (ID = 72284) Radio
Zenith Radio Corp.;: A513R Ch=5A01 [Radio] ID = 72284 350x260
Select picture or schematic to display from thumbnails on the right and click for download.
For model A513R Ch=5A01, Zenith Radio Corp.; Chicago, IL:
Zenith model A-513-R (1957?) Copyright by Art Hoch

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 or 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: A513R Ch=5A01 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes Color red.
Beitman says Chassis 5A01 is similar to 5Y01.
4" x 6" PM elliptical speaker.
The Zenith Modell A513R is an AC-DC Operated 5 Tube AM Superheterodyne Receiver.
Source of data Collector's Guide to Antique Radios 4. Edition

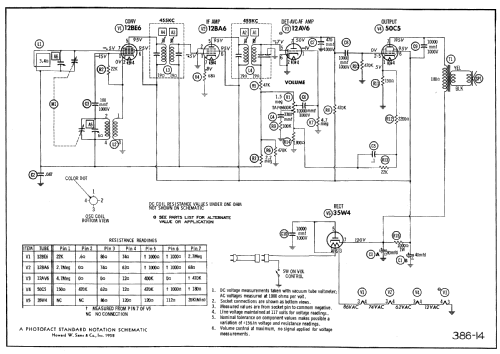

Circuit diagram reference Beitman Radio Diagrams Vol. 16, 1956
Mentioned in
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-58, Set 386, Folder 14)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
