A515V

A515V ; Zenith Radio Corp.; (ID = 1747355) Radio A515V ; Zenith Radio Corp.; (ID = 1747356) Radio
A515V ; Zenith Radio Corp.; (ID = 1747357) Radio A515V ; Zenith Radio Corp.; (ID = 1747358) Radio
A515V ; Zenith Radio Corp.; (ID = 1747359) Radio A515V ; Zenith Radio Corp.; (ID = 1487462) Radio
Use red slider bar for more.
A515V ; Zenith Radio Corp.; (ID = 1747355) Radio

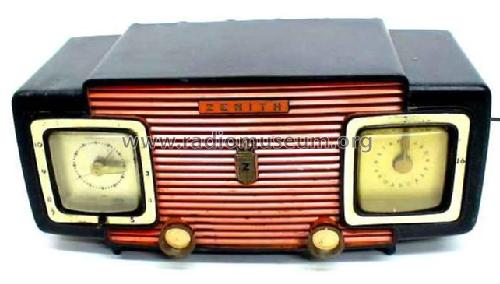

Zenith Radio Corp.;: A515V [Radio] ID = 1747355 642x365
Select picture or schematic to display from thumbnails on the right and click for download.
For model A515V, Zenith Radio Corp.; Chicago, IL:
USA_Zenith model A-515V with courtesy by Ebayseller Rodesales.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A515V - Zenith Radio Corp.; Chicago,
Material Bakelite case
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes

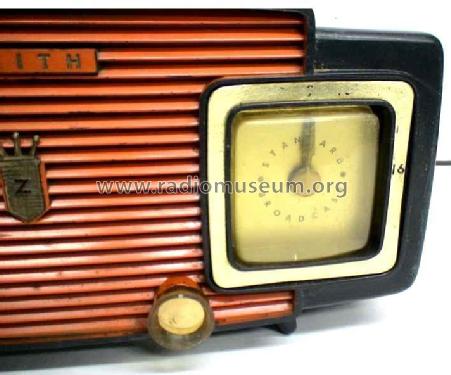

Black bakelite with red grille. Same model available in different colors.

Mentioned in Table Top Radios Vol. 1 Stein 98 (page 175.)

Model page created by Noemi Erb. See "Data change" for further contributors.
