A516G Ch= 5A09

A516G Ch= 5A09; Zenith Radio Corp.; (ID = 508303) Radio

A516G Ch= 5A09; Zenith Radio Corp.; (ID = 508304) Radio

A516G Ch= 5A09; Zenith Radio Corp.; (ID = 508305) Radio

A516G Ch= 5A09; Zenith Radio Corp.; (ID = 508306) Radio
A516G Ch= 5A09; Zenith Radio Corp.; (ID = 509208) Radio A516G Ch= 5A09; Zenith Radio Corp.; (ID = 509209) Radio
A516G Ch= 5A09; Zenith Radio Corp.; (ID = 509210) Radio
Use red slider bar for more.
A516G Ch= 5A09; Zenith Radio Corp.; (ID = 509208) Radio
Zenith Radio Corp.;: A516G Ch= 5A09 [Radio] ID = 509208 400x190
Select picture or schematic to display from thumbnails on the right and click for download.
For model A516G Ch= 5A09, Zenith Radio Corp.; Chicago, IL:

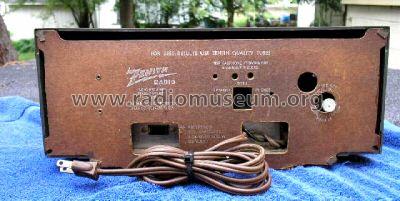

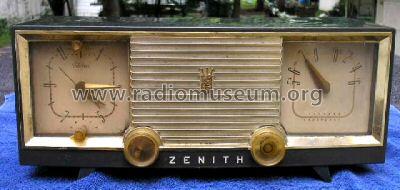

Zenith_A-516-G_with courtesy from Ebayseller pamteak.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: A516G Ch= 5A09 - Zenith Radio Corp.; Chicago,
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes The Zenith Modell A516G is an AC Operated 5 Tube AM Superheterodyne Receiver with Electric Clock.

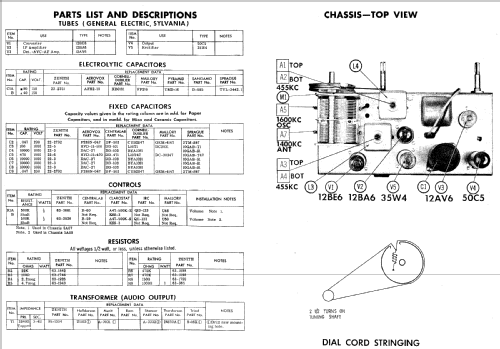

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 10-58, Set 418, Folder 13)

Model page created by Egon Penker. See "Data change" for further contributors.
