A624G Ch= 6A03

A624G Ch= 6A03; Zenith Radio Corp.; (ID = 140330) Radio

A624G Ch= 6A03; Zenith Radio Corp.; (ID = 747224) Radio

A624G Ch= 6A03; Zenith Radio Corp.; (ID = 747225) Radio

A624G Ch= 6A03; Zenith Radio Corp.; (ID = 747226) Radio

A624G Ch= 6A03; Zenith Radio Corp.; (ID = 747227) Radio
A624G Ch= 6A03; Zenith Radio Corp.; (ID = 2160547) Radio A624G Ch= 6A03; Zenith Radio Corp.; (ID = 2160548) Radio
A624G Ch= 6A03; Zenith Radio Corp.; (ID = 747223) Radio A624G Ch= 6A03; Zenith Radio Corp.; (ID = 2160549) Radio
A624G Ch= 6A03; Zenith Radio Corp.; (ID = 2160550) Radio A624G Ch= 6A03; Zenith Radio Corp.; (ID = 2160551) Radio
A624G Ch= 6A03; Zenith Radio Corp.; (ID = 215256) Radio
Use red slider bar for more.
A624G Ch= 6A03; Zenith Radio Corp.; (ID = 2160547) Radio
Zenith Radio Corp.;: A624G Ch= 6A03 [Radio] ID = 2160547 1400x766
Select picture or schematic to display from thumbnails on the right and click for download.
For model A624G Ch= 6A03, Zenith Radio Corp.; Chicago, IL:
USA_zenith_radio model A624G. Copy from Ebay seller hobbyhaby2011.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12BA6 12BE6 12BA6 12AV6 35C5 35W4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: A624G Ch= 6A03 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Circuit diagram reference Beitman Radio Diagrams Vol. 18, 1958

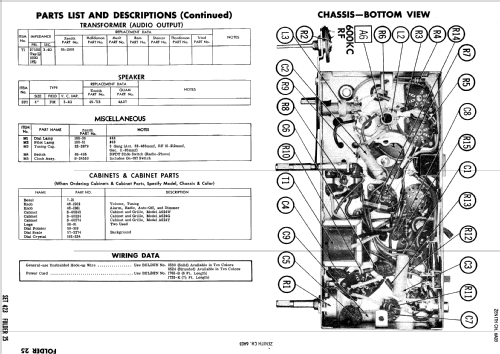

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 12-58, Set 423, Folder 25)

Model page created by Egon Penker. See "Data change" for further contributors.
