A724Y Ch= 7A02
Zenith Radio Corp.;: A724Y Ch= 7A02 [Radio] ID = 507005 400x266
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|

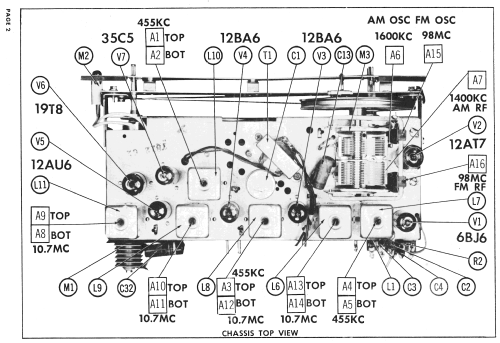

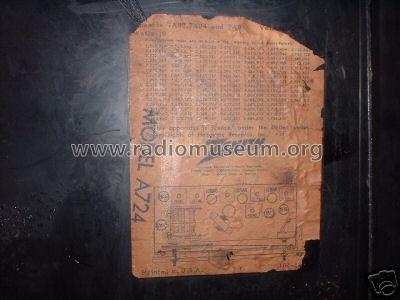

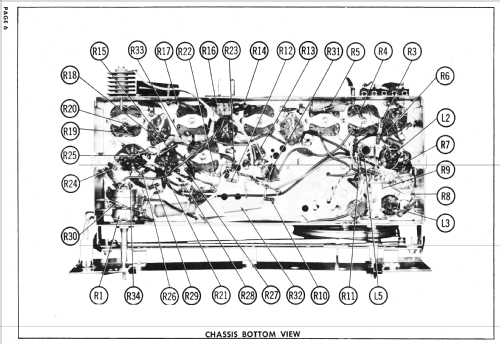

Chicago Radio Lab | ||||
|---|---|---|---|---|---|
| Year: 1958 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 7: 6BJ6 12AT7 12BA6 12BA6 12AU6 19T8 35C5 |
| Main principle | Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) 10 FM circuit(s) |
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | AC/DC-set / 117V = 110 -120 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: A724Y Ch= 7A02 - Zenith Radio Corp.; Chicago, |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel, low profile (big size). |
| Notes | The Zenith Modell A724Y is an AC/DC Operated 7 Tube AM-FM Receiver. |
| Literature/Schematics (1) | Photofact Folder, Howard W. SAMS (Date 5-58, Set 398, Folder 16) |
Model page created by Egon Penker. See "Data change" for further contributors.
