A730E Ch= 7A05 late chassis

A730E Ch= 7A05; Zenith Radio Corp.; (ID = 140323) Radio

A730E Ch= 7A05; Zenith Radio Corp.; (ID = 140324) Radio

A730E Ch= 7A05; Zenith Radio Corp.; (ID = 505201) Radio

A730E Ch= 7A05; Zenith Radio Corp.; (ID = 505202) Radio

A730E Ch= 7A05; Zenith Radio Corp.; (ID = 505203) Radio

A730E Ch= 7A05; Zenith Radio Corp.; (ID = 505204) Radio

A730E Ch= 7A05; Zenith Radio Corp.; (ID = 505205) Radio

A730E Ch= 7A05; Zenith Radio Corp.; (ID = 505206) Radio

A730E Ch= 7A05; Zenith Radio Corp.; (ID = 505207) Radio

A730E Ch= 7A05; Zenith Radio Corp.; (ID = 505208) Radio
A730E Ch= 7A05; Zenith Radio Corp.; (ID = 268128) Radio A730E Ch= 7A05; Zenith Radio Corp.; (ID = 707484) Radio
A730E Ch= 7A05; Zenith Radio Corp.; (ID = 2324188) Radio A730E Ch= 7A05; Zenith Radio Corp.; (ID = 2324189) Radio
A730E Ch= 7A05; Zenith Radio Corp.; (ID = 2324190) Radio A730E Ch= 7A05; Zenith Radio Corp.; (ID = 2324191) Radio
Use red slider bar for more.
A730E Ch= 7A05; Zenith Radio Corp.; (ID = 268128) Radio
Zenith Radio Corp.;: A730E Ch= 7A05 [Radio] ID = 268128 400x300

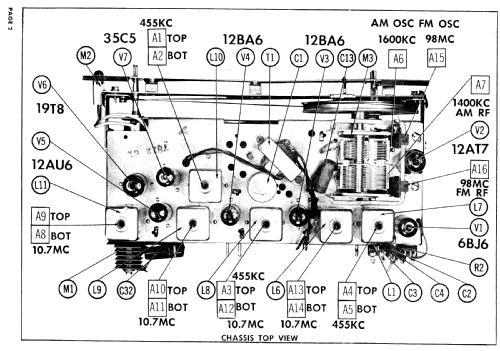

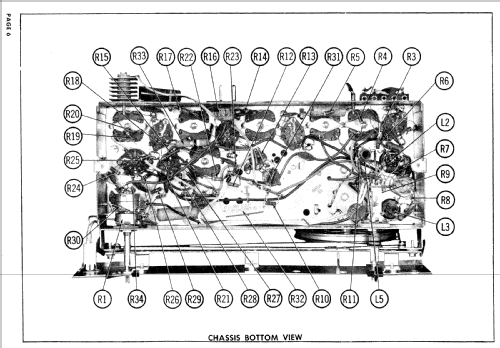

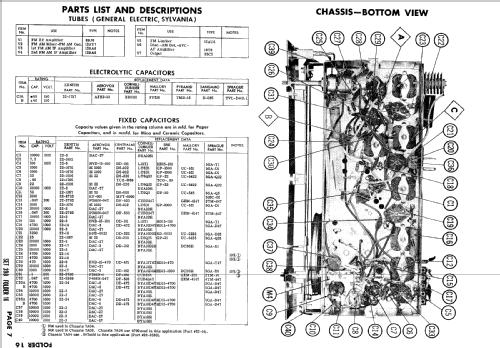

Select picture or schematic to display from thumbnails on the right and click for download.
For model A730E Ch= 7A05 late chassis, Zenith Radio Corp.; Chicago, IL:

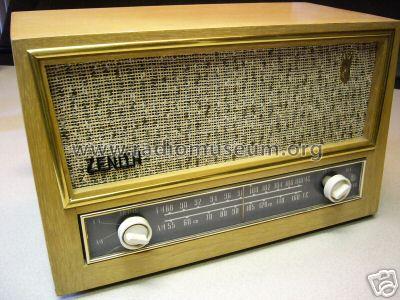

Image copy from Ebay seller highlandlea

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6BJ6 12AT7 12BA6 12BA6 12AU6 19T8 35C5
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 110 - 120 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: A730E Ch= 7A05 [late chassis] - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Selenium Rectifier.
The Zenith Modell A730E is an AC/DC Operated 7 Tube AM-FM Receiver.

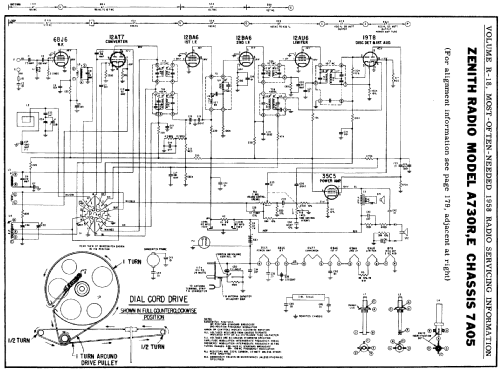

Circuit diagram reference Beitman Radio Diagrams Vol. 18, 1958
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-58, Set 398, Folder 16)

Model page created by Egon Penker. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, IL
