For model A battery Z1, Zenith Radio Corp.; Chicago, IL:
Replica / Ersatz Z1 using an Alkaline C cell internally

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1944 ?? Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Is a battery or storage battery / 1.5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: A battery Z1 - Zenith Radio Corp.; Chicago,
Dimensions (WHD) 1.1 x 3.75 x 1.1 inch / 28 x 95 x 28 mm
Notes

From label appears to be for various applications including Hearing Aid. The "A" no doubt refers to use for filaments.

A single Cylindrical Zinc Carbon cell. Dimensions are approximate.

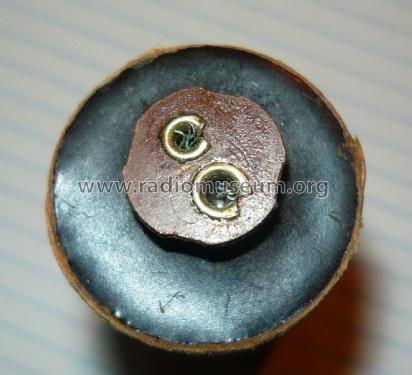

Connection Type A (Two pins same as common AD35).

Used as Scale lamp / Dial bulb on Zenith Transoceanic range.

No longer available but a replica can contain an Alkaline C size cell.

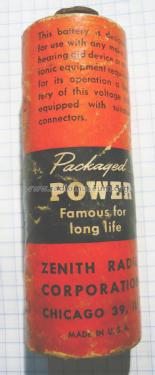

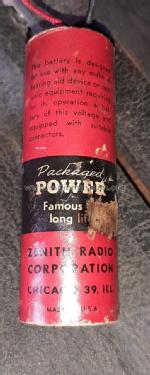

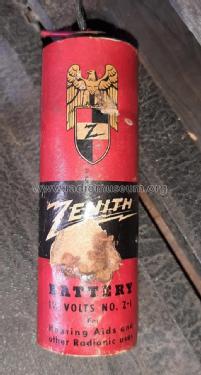

More than one version of the label.
