Amplifigon Detector/Audio Amplifier

Amplifigon Detector/Audio Amplifier; Zenith Radio Corp.; (ID = 977454) mod-pre26
Use red slider bar for more.
Amplifigon Detector/Audio Amplifier; Zenith Radio Corp.; (ID = 977454) mod-pre26
Zenith Radio Corp.;: Amplifigon Detector/Audio Amplifier [mod-pre26] ID = 977454 933x697
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifigon Detector/Audio Amplifier, Zenith Radio Corp.; Chicago, IL:

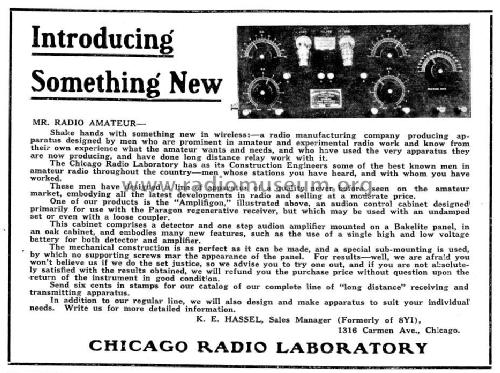

June 1919 QST

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1919 Category: Radio module pre 1926 (not a part, not a key)
Valves / Tubes 2: Audion_dbw Audion_dbw
Main principle Detector with Vacuum Tube (Valve), no tuner; 1 AF stage(s)
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Amplifigon Detector/Audio Amplifier - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes The 1919 Chicago Radio Laboratories Amplifigon is an audion control cabinet designed primarily for use with the Paragon regenerative receiver, but which may be used with an undamped set or even a loose coupler. The cabinet consists of a detector and a one step audion amplifier mounted on a Bakelite panel, in an oak cabinet. This version of the Amplifigon used two De Forest Tubular Audions.
Literature/Schematics (1) QST (June 1919 QST)

Model page created by Alan Larsen. See "Data change" for further contributors.
