For model Aviatrix 777 Ch= 2059, Zenith Radio Corp.; Chicago, IL:
Aviatrix 777 (Ch=2059) 1934. Image shows model767. Model 777 use the same cabinet.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: 58 58 58 56 56 56 56 56 56 59 59 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: Aviatrix 777 Ch= 2059 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
Notes Dual Speaker;
External source of data Ernst Erb

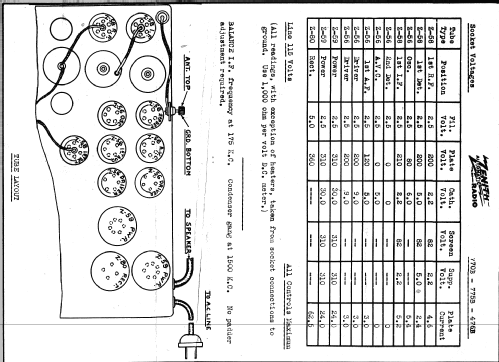

Circuit diagram reference Rider's Perpetual, Volume 4 = ca. 1934 and before
Mentioned in Zenith Radio The Early Years 1919-1935
