B511V "The Trumpeteer" Ch= 5B10

B511V 'The Trumpeteer' Ch= 5B10; Zenith Radio Corp.; (ID = 60967) Radio

B511V 'The Trumpeteer' Ch= 5B10; Zenith Radio Corp.; (ID = 508370) Radio

B511V 'The Trumpeteer' Ch= 5B10; Zenith Radio Corp.; (ID = 508373) Radio

B511V 'The Trumpeteer' Ch= 5B10; Zenith Radio Corp.; (ID = 508371) Radio

B511V 'The Trumpeteer' Ch= 5B10; Zenith Radio Corp.; (ID = 508372) Radio
B511V 'The Trumpeteer' Ch= 5B10; Zenith Radio Corp.; (ID = 158024) Radio B511V 'The Trumpeteer' Ch= 5B10; Zenith Radio Corp.; (ID = 322945) Radio
B511V 'The Trumpeteer' Ch= 5B10; Zenith Radio Corp.; (ID = 322951) Radio B511V 'The Trumpeteer' Ch= 5B10; Zenith Radio Corp.; (ID = 322953) Radio
B511V 'The Trumpeteer' Ch= 5B10; Zenith Radio Corp.; (ID = 2028862) Radio
Use red slider bar for more.
B511V 'The Trumpeteer' Ch= 5B10; Zenith Radio Corp.; (ID = 158024) Radio

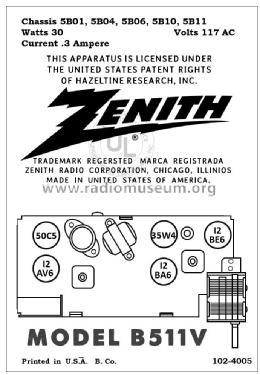

Zenith Radio Corp.;: B511V "The Trumpeteer" Ch= 5B10 [Radio] ID = 158024 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model B511V "The Trumpeteer" Ch= 5B10, Zenith Radio Corp.; Chicago, IL:
B-511V (Ch=5B10) 1959 Ebay seller enterprise40

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: B511V "The Trumpeteer" Ch= 5B10 - Zenith Radio Corp.; Chicago,
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 11.5 x 5.5625 x 5.75 inch / 292 x 141 x 146 mm
Notes The Zenith Modell B511V is an AC Operated 5 Tube AM Superheterodyne Receiver.
Circuit diagram reference Beitman Radio Diagrams Vol. 19, 1959
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-59, Set 443, Folder 20)

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, IL
