For model B513V "The Toreador" Ch= 5B01, Zenith Radio Corp.; Chicago, IL:
Zenith B-513-V (1959) Copyright by Steve Tardi Radio Attic

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / Either AC: 110 - 120V or DC: 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: B513V "The Toreador" Ch= 5B01 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

The Zenith B513V is an AC/DC operated 5 tube AM band receiver.  The AM band frequency tuning range is 530 to 1625kHz.  Has 6" x 9" PM elliptical speaker and internal loop antenna.

The following models use the same schematic and similar chassis but have different cabinets and cabinet colors:

Model Chassis Cabinet Colors
B513F 5B01 Fern Green & White
B513L 5B01 Shell Beige & Mesa Tan
B513V 5B01 Mandarin Orange & White
B513Y 5B01 Ebony & Shell Beige
D513F 5D01 Fern Green & White
D513L 5D01 Shell Beige & Mesa Tan
D513V 5D01 Mandarin Orange & White
D513Y 5D01 Ebony & Shell Beige

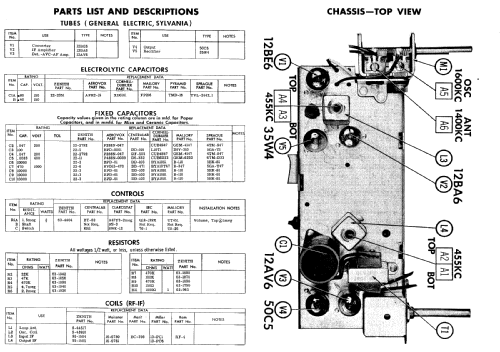

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-59, Set 442, Folder 18)
Literature/Schematics (2) Beitman Radio Diagrams, Vol. 19, 1959 (Page 173)

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
