B514C Ch= 5B04; Zenith Radio Corp.; (ID = 2160597) Radio

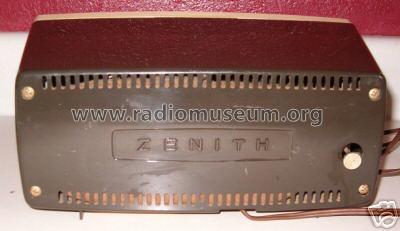

Zenith Radio Corp.;: B514C Ch= 5B04 [Radio] ID = 2160597 993x459

Select picture or schematic to display from thumbnails on the right and click for download.

For model B514C Ch= 5B04, Zenith Radio Corp.; Chicago, IL:
USA_zenith_radio model B514C. Copy from Ebay seller lcsantiquities.

Country:

United States of America (USA)

Manufacturer / Brand:

Zenith Radio Corp.; Chicago, IL

alternative name

Chicago Radio Lab

Year: 1959

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

5: 12BE6 12BA6 12AV6 50C5 35W4

Main principle	ZF/IF 455 kHz
Tuned circuits	6 AM circuit(s)
Wave bands	Broadcast only (MW).
Details
Power type and voltage	Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org	Model: B514C Ch= 5B04 - Zenith Radio Corp.; Chicago,
Shape	Tablemodel with Clock ((Alarm-) Clock Radio).
Notes	The Zenith Modell B514C is an AC Operated 5 Tube AM Superheterodyne Receiver with Electric Clock.

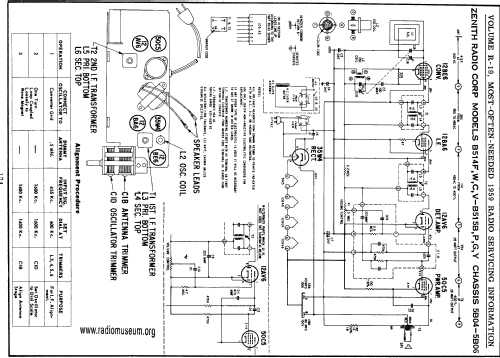

Circuit diagram reference	Beitman Radio Diagrams Vol. 19, 1959
Literature/Schematics (1)	Photofact Folder, Howard W. SAMS (Date 5-59, Set 443, Folder 20)
