For model B514V Ch= 5B04, Zenith Radio Corp.; Chicago, IL:
B-514V (5B04) Ebay seller cp72103

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner

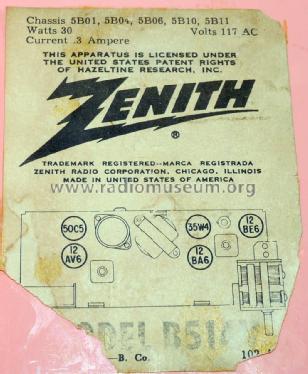

Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: B514V Ch= 5B04 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 11.375 x 5.5 x 6 inch / 289 x 140 x 152 mm
Notes The Zenith Modell B514V is an AC Operated 5 Tube AM Superheterodyne Receiver with Electric Clock.
Net weight (2.2 lb = 1 kg) 4 lb 8 oz (4.5 lb) / 2.043 kg

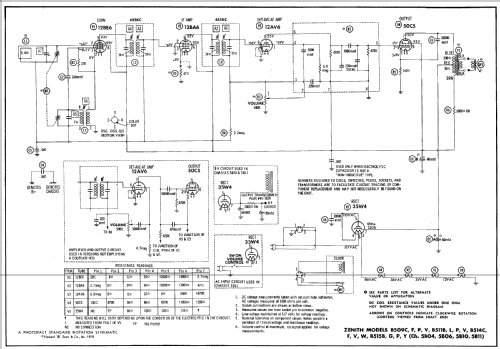

Circuit diagram reference Beitman Radio Diagrams Vol. 19, 1959
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-59, Set 443, Folder 20)

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
