B514W Ch= 5B04
 |
 |
 |
 |
 |
Use red slider bar for more.
Zenith Radio Corp.;: B514W Ch= 5B04 [Radio] ID = 118760 360x270
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Chicago Radio Lab | ||||
|---|---|---|---|---|---|
| Year: 1959 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 12BE6 12BA6 12AV6 50C5 35W4 |
| Main principle | ZF/IF 455 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110 - 120 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm |
| Power out | |
| from Radiomuseum.org | Model: B514W Ch= 5B04 - Zenith Radio Corp.; Chicago, |
| Shape | Tablemodel with Clock ((Alarm-) Clock Radio). |
| Notes | The Zenith Modell B514W is an AC Operated 5 Tube AM Superheterodyne Receiver with Electric Clock. |
| Circuit diagram reference | Beitman Radio Diagrams Vol. 19, 1959 |

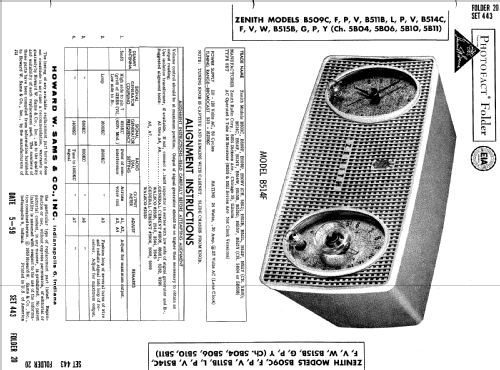

| Literature/Schematics (1) | Photofact Folder, Howard W. SAMS (Date 5-59, Set 443, Folder 20) |
Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
