B515Y "The Starlighter" Ch= 5B06

ID = 72355

B515Y 'The Starlighter' Ch= 5B06; Zenith Radio Corp.; (ID = 508412) Radio

B515Y 'The Starlighter' Ch= 5B06; Zenith Radio Corp.; (ID = 508413) Radio

B515Y 'The Starlighter' Ch= 5B06; Zenith Radio Corp.; (ID = 508414) Radio

B515Y 'The Starlighter' Ch= 5B06; Zenith Radio Corp.; (ID = 508415) Radio

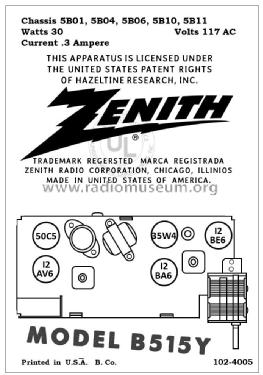

{gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "60 KB", notes: "For model B515Y \"The Starlighter\" Ch= 5B06, Zenith Radio Corp.; Chicago, IL:[br]B-515-Y(Ch=5B06)1959 copy from Ebay seller arkiemay1", title: "Zenith Radio Corp.; B515Y 'The Starlighter' Ch= 5B06 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "50 KB", notes: "For model B515Y \"The Starlighter\" Ch= 5B06, Zenith Radio Corp.; Chicago, IL:[br]B-515-Y(Ch=5B06)1959 back-view copy from Ebay seller arkiemay1", title: "Zenith Radio Corp.; B515Y 'The Starlighter' Ch= 5B06 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "59 KB", notes: "For model B515Y \"The Starlighter\" Ch= 5B06, Zenith Radio Corp.; Chicago, IL:[br]B-515-Y(Ch=5B06)1959 modelnr.-view copy from Ebay seller arkiemay1", title: "Zenith Radio Corp.; B515Y 'The Starlighter' Ch= 5B06 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "1400", gbH: "1572", mW: "333.0", mH: "375", kb: "380 KB", notes: "For model B515Y \"The Starlighter\" Ch= 5B06, Zenith Radio Corp.; Chicago, IL:[br]Picture from 1960 Zenith sales brochure", title: "Zenith Radio Corp.; B515Y 'The Starlighter' Ch= 5B06 uploaded by David Erali (2)", ite: "2"} {gbW: "1293", gbH: "754", mW: "500", mH: "291.0", kb: "100 KB", notes: "For model B515Y \"The Starlighter\" Ch= 5B06, Zenith Radio Corp.; Chicago, IL:[br]USA_zenith_radio model B515Y. Copy from Ebay seller logcabinantiques08.", title: "Zenith Radio Corp.; B515Y 'The Starlighter' Ch= 5B06 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "900", gbH: "1600", mW: "210.0", mH: "375", kb: "188 KB", notes: "For model B515Y \"The Starlighter\" Ch= 5B06, Zenith Radio Corp.; Chicago, IL:[br]USA_zenith_radio model B515Y. Copy from Ebay seller logcabinantiques08.", title: "Zenith Radio Corp.; B515Y 'The Starlighter' Ch= 5B06 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "1400", gbH: "787", mW: "500", mH: "281.0", kb: "172 KB", notes: "For model B515Y \"The Starlighter\" Ch= 5B06, Zenith Radio Corp.; Chicago, IL:[br]USA_zenith_radio model B515Y. Copy from Ebay seller logcabinantiques08.", title: "Zenith Radio Corp.; B515Y 'The Starlighter' Ch= 5B06 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "923", gbH: "820", mW: "422.0", mH: "375", kb: "42 KB", notes: "For model B515Y \"The Starlighter\" Ch= 5B06, Zenith Radio Corp.; Chicago, IL:[br]USA_zenith_radio model B515Y. Copy from Ebay seller logcabinantiques08.", title: "Zenith Radio Corp.; B515Y 'The Starlighter' Ch= 5B06 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "1240", gbH: "731", mW: "500", mH: "294.0", kb: "71 KB", notes: "For model B515Y \"The Starlighter\" Ch= 5B06, Zenith Radio Corp.; Chicago, IL:[br]USA_zenith_radio model B515Y. Copy from Ebay seller logcabinantiques08.", title: "Zenith Radio Corp.; B515Y 'The Starlighter' Ch= 5B06 uploaded by Hans Amberger (2)", ite: "2"}

B515Y 'The Starlighter' Ch= 5B06; Zenith Radio Corp.; (ID = 118762) Radio

B515Y 'The Starlighter' Ch= 5B06; Zenith Radio Corp.; (ID = 118763) Radio

B515Y 'The Starlighter' Ch= 5B06; Zenith Radio Corp.; (ID = 118764) Radio

B515Y 'The Starlighter' Ch= 5B06; Zenith Radio Corp.; (ID = 2033184) Radio

B515Y 'The Starlighter' Ch= 5B06; Zenith Radio Corp.; (ID = 2160622) Radio

Use red slider bar for more.

Zenith Radio Corp.;: B515Y "The Starlighter" Ch= 5B06 [Radio] ID = 118762 640x480

Select picture or schematic to display from thumbnails on the right and click for download.

For model B515Y 'The Starlighter' Ch= 5B06, Zenith Radio Corp.; Chicago, IL:
B-515-Y(Ch=5B06)1959 copy from Ebay seller arkiemay1

Country:

United States of America (USA)

Manufacturer / Brand:

Zenith Radio Corp.; Chicago, IL

alternative name

Chicago Radio Lab

Year: 1959

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

5: 12BE6 12BA6 12AV6 50C5 35W4

Main principle

ZF/IF 455 kHz

Tuned circuits

6 AM circuit(s)

Wave bands

Broadcast only (MW).

Details

Power type and voltage

Alternating Current supply (AC) / 110 - 120 Volt

Loudspeaker

Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

Power out

from Radiomuseum.org

Model: B515Y "The Starlighter" Ch= 5B06 - Zenith Radio Corp.; Chicago,

Material

Plastics (no bakelite or catalin)

Shape

Tablemodel with Clock ((Alarm-) Clock Radio).

Dimensions (WHD)

11.5 x 5.5625 x 6 inch / 292 x 141 x 152 mm

Notes

The Zenith B515Y is an AC operated 5 Tube AM Superheterodyne Receiver with Electric Clock. The AM band frequency tuning range is 535 to 1620kHz. Some units contain a couplate.

The following models use the same schematic and cabinet but have different cabinet colors.

Model	Cabinet Colors
B515B	Cerulean and Frost Blue
B515G	Dawn Gray and White
B515P	Champagne Gold and White
B515Y	Ebony

Circuit diagram reference

Beitman Radio Diagrams Vol. 19, 1959

Literature/Schematics (1)

Photofact Folder, Howard W. SAMS (Date 5-59, Set 443, Folder 20)
