B615G "The Cotillion" Ch= 6B05 late

B615G 'The Cotillion' Ch= 6B05; Zenith Radio Corp.; (ID = 60982) Radio
B615G 'The Cotillion' Ch= 6B05; Zenith Radio Corp.; (ID = 1004506) Radio B615G 'The Cotillion' Ch= 6B05; Zenith Radio Corp.; (ID = 118765) Radio
B615G 'The Cotillion' Ch= 6B05; Zenith Radio Corp.; (ID = 118766) Radio B615G 'The Cotillion' Ch= 6B05; Zenith Radio Corp.; (ID = 118767) Radio
B615G 'The Cotillion' Ch= 6B05; Zenith Radio Corp.; (ID = 2028865) Radio
Use red slider bar for more.
B615G 'The Cotillion' Ch= 6B05; Zenith Radio Corp.; (ID = 1004506) Radio
Zenith Radio Corp.;: B615G "The Cotillion" Ch= 6B05 [Radio] ID = 1004506 813x645
Select picture or schematic to display from thumbnails on the right and click for download.

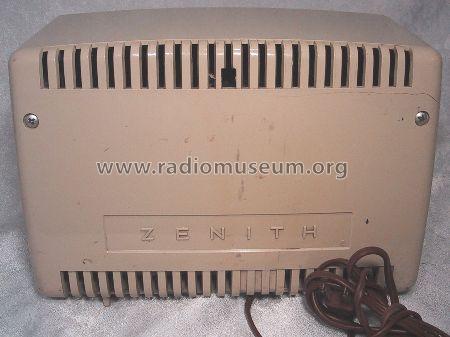

For model B615G "The Cotillion" Ch= 6B05 late, Zenith Radio Corp.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner

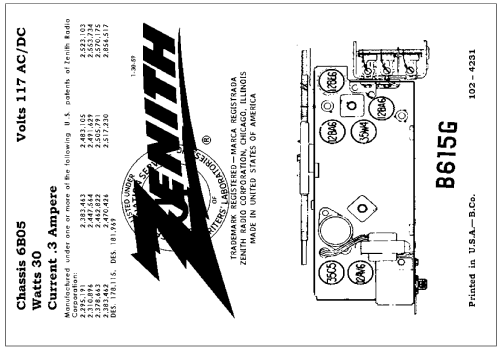

Valves / Tubes 6: 12BA6 12BE6 12BA6 12AV6 35C5 35W4
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: B615G "The Cotillion" Ch= 6B05 [late] - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 10.625 x 7.3125 x 5.75 inch / 270 x 186 x 146 mm
Notes The Zenith Model B615G is an AC/DC operated 6 Tube AM Receiver.
Circuit diagram reference Beitman Radio Diagrams Vol. 19, 1959
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 6-59, Set 445, Folder 16)

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
