B615L Ch= 6B05 Cotillion (late)

B615L Ch= 6B05; Zenith Radio Corp.; (ID = 60983) Radio
B615L Ch= 6B05; Zenith Radio Corp.; (ID = 118768) Radio B615L Ch= 6B05; Zenith Radio Corp.; (ID = 118770) Radio
B615L Ch= 6B05; Zenith Radio Corp.; (ID = 118771) Radio B615L Ch= 6B05; Zenith Radio Corp.; (ID = 277900) Radio
B615L Ch= 6B05; Zenith Radio Corp.; (ID = 277902) Radio B615L Ch= 6B05; Zenith Radio Corp.; (ID = 2028867) Radio
Use red slider bar for more.
B615L Ch= 6B05; Zenith Radio Corp.; (ID = 118768) Radio
Zenith Radio Corp.;: B615L Ch= 6B05 [Radio] ID = 118768 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model B615L Ch= 6B05 Cotillion (late), Zenith Radio Corp.; Chicago, IL:
B-615-L(Ch=6B05late)1959 copy from Ebay seller oldcards1

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12BA6 12BE6 12BA6 12AV6 35C5 35W4
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: B615L Ch= 6B05 [Cotillion ] - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 10.625 x 7.3125 x 5.75 inch / 270 x 186 x 146 mm
Notes The Zenith Model B615L is an AC/DC operated 6 Tube AM Receiver.

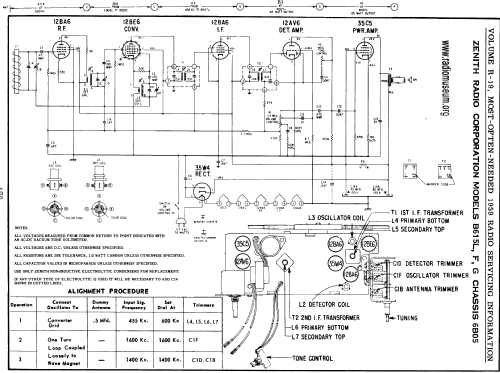

Circuit diagram reference Beitman Radio Diagrams Vol. 19, 1959
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 6-59, Set 445, Folder 16)

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
