For model B508R "The Majorette" Ch= 5Z05, Zenith Radio Corp.; Chicago, IL:
B-508-R (1959) Ebay seller duraceldave87

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner

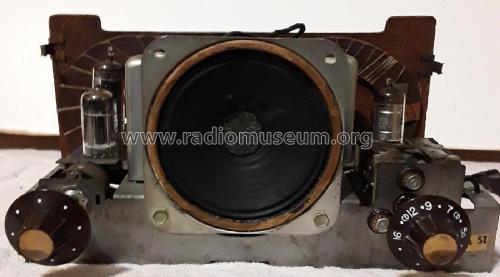

Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / Either AC: 60 Hz, 110 to 120V or DC: 110 to 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: B508R "The Majorette" Ch= 5Z05 - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 9.5625 x 5 x 5.375 inch / 243 x 127 x 137 mm
Notes

The Zenith B508R is an AC/DC operated 5 tube BC band receiver.  The BC band frequency tuning range is 535 to 1620kHz.  Has internal loop antenna.

The following models use the same chassis, schematic and cabinet but have different cabinet colors:

Model Chassis Cabinet Color
B508R 5Z05 Maroon with white front
B508W 5Z05 White with white front

The SAMS Photofact Set 353, Folder 17 calls out model Z508B, Z508L and Z508V. However the SAMS index for the B508 series refers to this same Set and Folder and so therefore is applicable for this model also. The same applies to the Beitman reference.

WARNING:  One side of the AC line is connected to the chassis.  When servicing this radio, an isolation transformer should be used between the power line and the radio.

Price in first year of sale 19.95 USD
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 353, folder 17 dated 4-57)
Literature/Schematics (2) Beitman Radio Diagrams, Vol. 17, 1957 (Page 177)

Model page created by Gonzalo Moncada-Jimenez. See "Data change" for further contributors.
