BP6 L

BP6 L ; Zenith Radio Corp.; (ID = 60979) R-Player

BP6 L ; Zenith Radio Corp.; (ID = 605783) R-Player

BP6 L ; Zenith Radio Corp.; (ID = 605784) R-Player
BP6 L ; Zenith Radio Corp.; (ID = 124996) R-Player BP6 L ; Zenith Radio Corp.; (ID = 124997) R-Player
BP6 L ; Zenith Radio Corp.; (ID = 124998) R-Player BP6 L ; Zenith Radio Corp.; (ID = 124999) R-Player
Use red slider bar for more.
BP6 L ; Zenith Radio Corp.; (ID = 124996) R-Player
Zenith Radio Corp.;: BP6 L [R-Player] ID = 124996 473x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model BP6 L, Zenith Radio Corp.; Chicago, IL:
eBay seller blixar

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 Category: Sound/Video Recorder and/or Player
Valves / Tubes 2: 50C5 35W4
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: BP6 L - Zenith Radio Corp.; Chicago,
Shape Tablemodel, with any shape - general.
Notes The Zenith Radio Model BP6L is an AC operated 2 Tube Phono Amplifier with 4 Speed Manual Record Player.
Circuit diagram reference Beitman Radio Diagrams Vol. 19, 1959

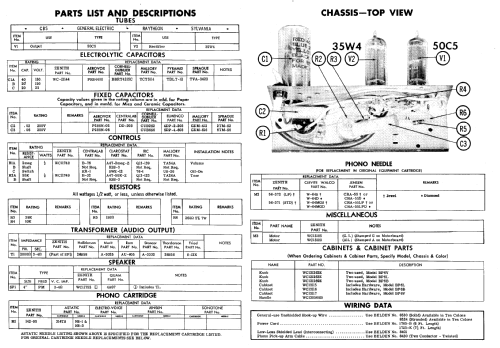

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-60, Set 470, Folder 21)

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
