BP7F ; Zenith Radio Corp.; (ID = 60985) R-Player

BP7F ; Zenith Radio Corp.; (ID = 605110) R-Player

BP7F ; Zenith Radio Corp.; (ID = 605111) R-Player
BP7F ; Zenith Radio Corp.; (ID = 2342499) R-Player BP7F ; Zenith Radio Corp.; (ID = 2342500) R-Player
BP7F ; Zenith Radio Corp.; (ID = 252630) R-Player BP7F ; Zenith Radio Corp.; (ID = 252627) R-Player
BP7F ; Zenith Radio Corp.; (ID = 252626) R-Player BP7F ; Zenith Radio Corp.; (ID = 252628) R-Player
BP7F ; Zenith Radio Corp.; (ID = 252629) R-Player BP7F ; Zenith Radio Corp.; (ID = 605109) R-Player
Use red slider bar for more.
BP7F ; Zenith Radio Corp.; (ID = 2342499) R-Player

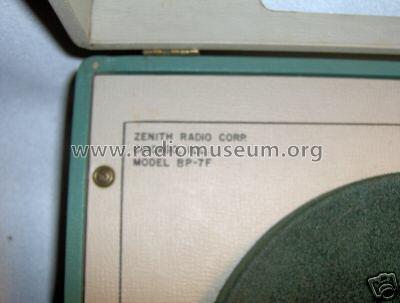

Zenith Radio Corp.;: BP7F [R-Player] ID = 2342499 303x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model BP7F, Zenith Radio Corp.; Chicago, IL:
Copy with courtesy from Ebay seller nuold05.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: 12AV6 50C5 35W4
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker 2 Loudspeakers / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: BP7F - Zenith Radio Corp.; Chicago,
Shape Tablemodel, with any shape - general.
Notes The Zenith Model BP7F is an AC operated 3 Tube Phono Amplifier wit 4 Speed Manual Record Player.
Circuit diagram reference Beitman Radio Diagrams Vol. 19, 1959
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-60, Set 469, Folder 21)

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, IL
