For model C268W, Zenith Radio Corp.; Chicago, IL:
By Courtesy Of EBAY User: aboauto

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: C268W - Zenith Radio Corp.; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 6.5 x 7 x 5 inch / 165 x 178 x 127 mm
Notes

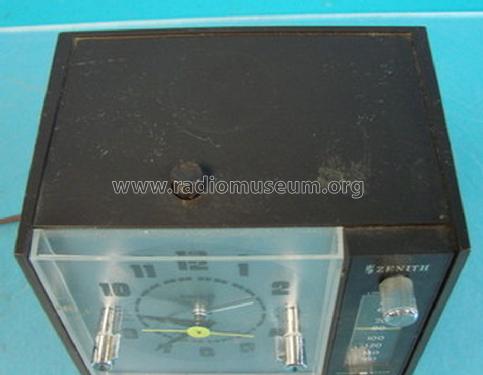

Zenith Table Top AM Clock Radio Model C268W.
Dark brown plastic cabinet with wood finished sides, large silver clock face.

Model page created by Franz Scharner. See "Data change" for further contributors.
