C845E "The Super Interlude" Ch= 8C01
Zenith Radio Corp.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Zenith Radio Corp.; Chicago, IL
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 120605
-
- alternative name: Chicago Radio Lab

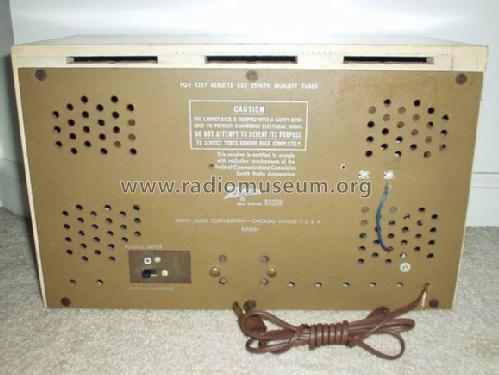

With courtesy by Ebayseller ultram-time
Picture from 1960 Zenith sales brochure
RECONSTRUCTED LABEL
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: C845E "The Super Interlude" Ch= 8C01 - Zenith Radio Corp.; Chicago,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 15.625 x 10 x 8.125 inch / 397 x 254 x 206 mm
- Notes
-
Wood case with plastic front.
The various letter designations between models refer to cabinet color. The available cabinet colors are shown on the sales brochure photo, however, the specific color vs. letter designation is not known.
- Source of data
- - - Data from my own collection
- Author
- Model page created by Didier Tholomier. See "Data change" for further contributors.
