For model C845L "The Super Interlude" Ch= 8C02, Zenith Radio Corp.; Chicago, IL:
USA Zenith C845L front

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6BJ6 6AB4 12AT7 12BA6 12BA6 12AU6 19T8 35C5
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Tuned circuits 9 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: C845L "The Super Interlude" Ch= 8C02 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 15.625 x 10 x 8.125 inch / 397 x 254 x 206 mm
Notes

Sams photofact set 485 folder 18 date 5-60 features the Zenith models C835E, C835H, C835R, C835W with chassis 8C01 and the models C845L, C845M, C845W, C845Y with chassis 8C02 as the same schematic.

Wood with plastic face.

The various letter designations between models refer to cabinet color.  The available cabinet colors are shown on the sales brochure photo, however, the specific color vs. letter designation is not known.

Circuit diagram reference Beitman Radio Diagrams Vol. 20, 1960

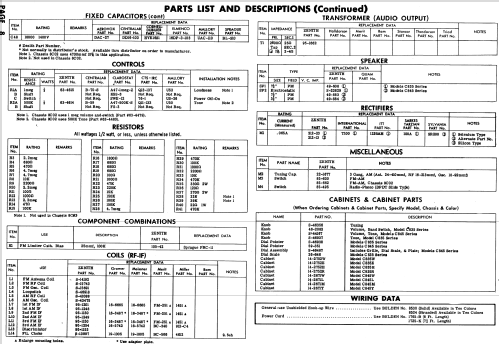

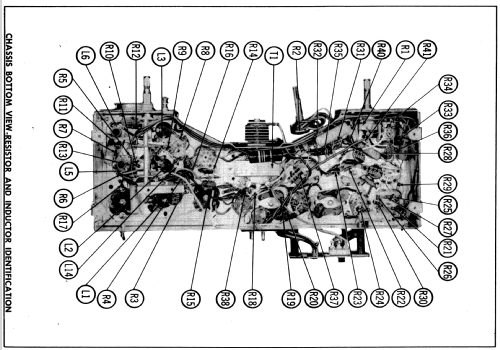

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 485 folder 18 date 5-60)
Literature/Schematics (2) Machine Age to Jet Age II (page 328.)

Model page created by Trev Levick. See "Data change" for further contributors.
