• Year
  • 1968 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 87607
    • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • from Radiomuseum.org

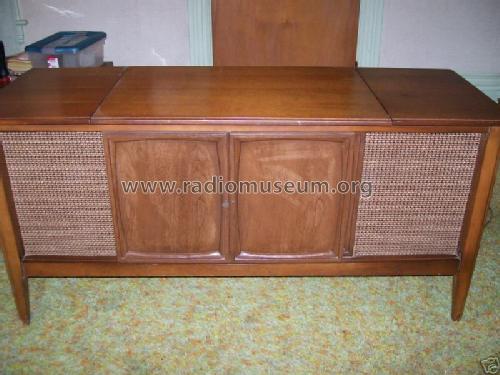

  • Model: Ch= 10ZT30 - Zenith Radio Corp.; Chicago,
  • Notes
  • 10ZT30 is an am/fm stereo-tuner. To the chassis belongs also a poweramp with power supply.
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 27, 1967-69 (last vol.)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
